AEM's Air Inlet Temperature Sensor Kits (AIT) senses the air temperature on the inlet side of the engine.

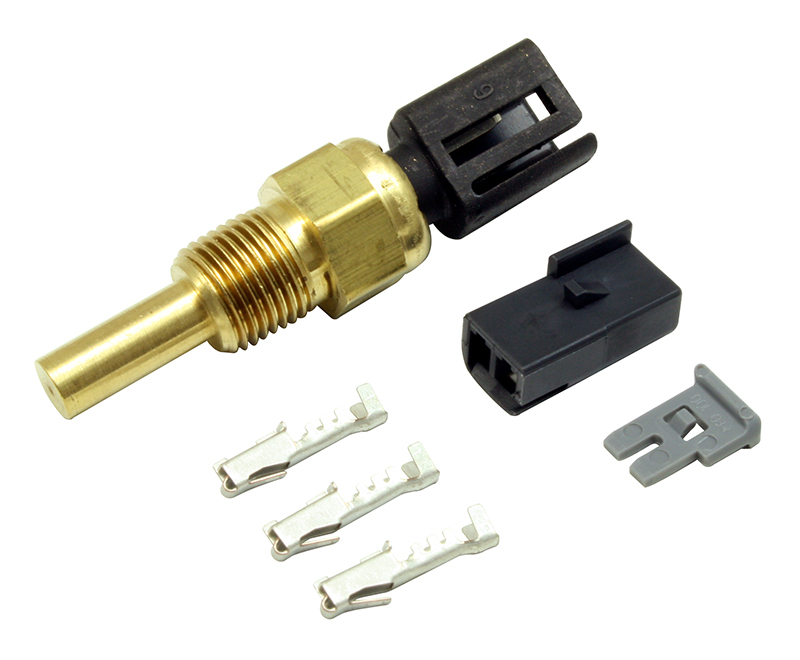

30-2010: Air Temp Sensor with 3/8' NPT Male Thread, Aluminum Bung, Connector & Pins

  • Weatherproof connector
  • Includes mating connector & pins
  • Senses the air temperature on the inlet side of the engine

SPECS:

  • Accuracy: < 1.5°C / 2.7°F
  • Operating Temp: -20C to 150C / -4F to 302F
  • Resistive Range (?): See Instructions
  • Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
  • Sensor Body Material: Brass
  • Thread: 1/8" NPT
  • Hex Size: 1/2"
  • Installation Torque: 13.5Nm / 10 ft-lbs
  • Weight: 10g
  • Electrical Termination: Weatherproof High Performance DTM-Style connector. Includes Mating Connector, Pins & Wire Seals
  • Includes: Air Temp Sensor High Performance DTM-Style, 1/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals
SKU 30-2014
Barcode # 840879024178
Brand AEM Electronics
Shipping Weight 0.0590kg
Shipping Width 0.013m
Shipping Height 0.009m
Shipping Length 0.014m
