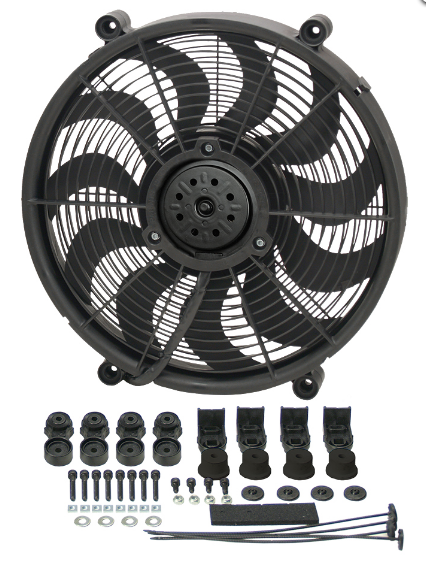

Our most popular, this 17" High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades, each includes a patented ratchet mounting system for a professional installation. Can be used as a pusher or puller fan by simply flipping brackets without changing direction of the unit. Moves up to 2400 CFM while drawing up to 23.5 amps.

Specifications

  • CFM high/low: 2400/1800
  • Amp draw high/low: 23.5/17.4
  • Width: 16-7/8"
  • Height: 16-7/8"
  • Depth: 2-5/8"
  • Mounting: 8-7/8" x 15-5/8"

Features

  • Mounts as a Pusher or Puller without flipping blade or switching motor leads
  • State-of-the-art symmetrical design
  • High Output 265 watt 2 speed motor (two separate turn-on sources required for 2 speed operation)
  • 2400 CFM on high speed / 1800 CFM on low speed
  • Ultra-quiet patented skewed blade design
  • Patented ratchet mounting system
SKU 16217
Barcode # 083277162176
Brand Derale
Shipping Weight 5.0000kg
Shipping Width 0.500m
Shipping Height 0.200m
Shipping Length 0.500m
Shipping Cubic 0.050000000m3
