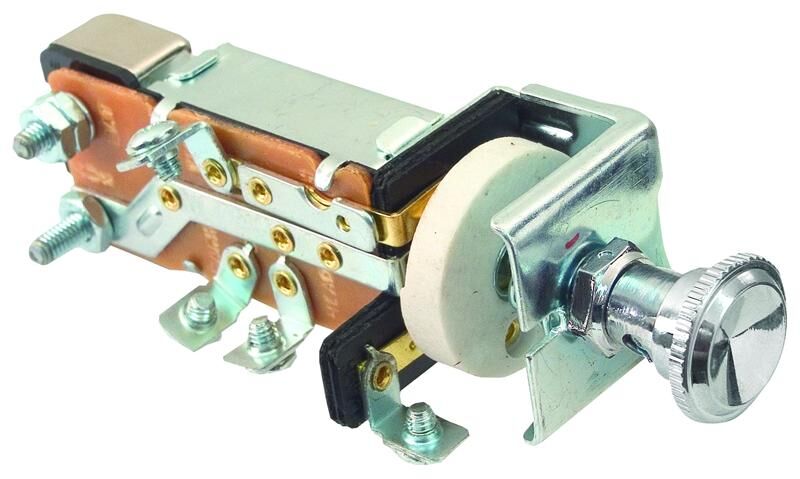

1955-56 Chevy Bel Air, Corvette; 1955-59 Chevy Truck; Headlamp Switch; with Circuit Breaker; 12 Volt

Replacement for the original 12 volt headlight switch for 1955-59 Chevrolet and GMC truck models, 1955-56 Chevrolet One-Fifty, Two-Ten, Bel Air and Full Size Passenger Car models and 1955-57 Corvette. Replaces GM OE part # 1995072, 1995082. Note; For use on 1955 Chevrolet and GMC truck 2nd design. (late production models). Fits 1955-57 Corvette models with 12 Volt.

Chevrolet Applications

• 1955 - 1956 Chevrolet Bel Air Base
• 1955 - 1956 Chevrolet Bel Air Beauville
• 1955 - 1956 Chevrolet Bel Air Nomad
• 1955 - 1957 Chevrolet Corvette
• 1955 - 1956 Chevrolet Nomad
• 1955 - 1956 Chevrolet One-Fifty Series
• 1955 - 1956 Chevrolet Two-Ten Series Base
• 1955 - 1956 Chevrolet Two-Ten Series Del Ray

Chevrolet Truck Applications

• 1956 - 1959 Chevrolet 3100
• 1957 - 1959 Chevrolet 3100 3A
• 1959 - 1959 Chevrolet 3B
• 1959 - 1959 Chevrolet 3C
• 1959 - 1959 Chevrolet 3D
• 1959 - 1959 Chevrolet 3E
• 1955 - 1956 Chevrolet Sedan Delivery
• 1955 - 1959 Chevrolet Truck
• 1956 - 1958 Chevrolet Truck Base
• 1955 - 1958 Chevrolet Truck 3700
• 1955 - 1958 Chevrolet Truck 3600
• 1955 - 1957 Chevrolet Truck 3400
• 1955 - 1958 Chevrolet Truck 3200
• 1955 - 1955 Chevrolet Truck 3100
• 1955 - 1958 Chevrolet Truck 3500

GMC Truck Applications

• 1955 - 1959 GMC 100
• 1955 - 1955 GMC 100-22
• 1955 - 1959 GMC 150
• 1955 - 1955 GMC 150-22
• 1955 - 1955 GMC 250 Base
• 1955 - 1959 GMC 250
• 1956 - 1959 GMC 300
• 1956 - 1956 GMC 300 Base
• 1958 - 1958 GMC 350-8
• 1955 - 1959 GMC Truck

This switch can be used when upgrading older GM models from 6V to 12V

Universal fit, service replacement headlight switch and knob designed for fitment on a variety of GM models with 12 volt system. A convenient way to update your headlight switch when upgrading and converting your 6 volt system to 12 volt system. Each switch includes the shaft and knob.

Switch mounts in a 3/8" diameter hole. This switch is perfect for a hot rod, rat rod or custom. Can be used for just about any vehicle that needs a more modern headlamp switch. The shaft is not removable from this switch, but the knob can be removed using a 1/16" Allen wrench. If you wish to use your original headlight knob instead of the knob that comes with this switch, it must have 8-32 internal threads (or will need to be modified) to work with this switch. This switch does NOT control the interior lights.

Product Specifications

• Universal Push Pull for Headlamp
• 5 Screw Terminals
• 3 Positions
• Rating: 20 Amps @ 12 Volts DC With 11 ohms of Resistance
• Push Pull Switch with Circuit Breaker
• Rheostat - Turn to Dim Dashboard Light
• Three Position Switch = OFF-ON-ON
• Position 1 = Off
• Position 2 = Tail, Park, and Dash
• Position 3 = Tail, Dash, and Headlights
• 5 Screw Terminals (2 Stud Terminals)
• Stem 3/8" Long 3/8" Diameter
• Replaces GM 1994016, 1994022, 1995031, 1995035, 1995041, 1995045, 1995048, 1995052, D-1537

Buick Applications

• 1950 - 1953 Buick Roadmaster
• 1949 - 1949 Buick Roadmaster Series 70
• 1950 - 1953 Buick Special
• 1949 - 1949 Buick Special Series 40
• 1950 - 1953 Buick Super
• 1949 - 1949 Buick Super Series 50

Cadillac Applications

• 1948 - 1950 Cadillac Commercial Chassis
• 1950 - 1950 Cadillac Series 60 Fleetwood
• 1948 - 1949 Cadillac Series 60 Special Fleetwood
• 1948 - 1950 Cadillac Series 61
• 1948 - 1950 Cadillac Series 62
• 1948 - 1950 Cadillac Series 75 Fleetwood

Chevrolet Truck Applications

• 1954 - 1954 Chevrolet 1500
• 1947 - 1952 Chevrolet Fleetline Truck
• 1947 - 1948 Chevrolet Fleetmaster Truck
• 1947 - 1955 Chevrolet Sedan Delivery
• 1947 - 1955 Chevrolet Truck Base
• 1947 - 1955 Chevrolet Truck 3800
• 1948 - 1955 Chevrolet Truck 3700
• 1947 - 1955 Chevrolet Truck 3600
• 1955 - 1955 Chevrolet Truck 3400
• 1955 - 1955 Chevrolet Truck 3200
• 1947 - 1955 Chevrolet Truck 3100
• 1955 - 1955 Chevrolet Truck 3500
• 1948 - 1954 Chevrolet Truck 3900

GMC Truck Applications

• 1951 - 1955 GMC 100
• 1948 - 1955 GMC 100-22
• 1953 - 1954 GMC 100-24
• 1952 - 1953 GMC 102-22
• 1951 - 1955 GMC 150
• 1948 - 1955 GMC 150-22
• 1953 - 1954 GMC 150-24
• 1951 - 1955 GMC 250
• 1951 - 1955 GMC 250-22
• 1954 - 1954 GMC 250-24
• 1952 - 1952 GMC 253-22
• 1951 - 1955 GMC 280-22
• 1951 - 1955 GMC 300
• 1955 - 1955 GMC 350-8
• 1948 - 1949 GMC EF241
• 1948 - 1949 GMC EF242
• 1948 - 1950 GMC FC100
• 1948 - 1950 GMC FC101
• 1948 - 1950 GMC FC102
• 1948 - 1950 GMC FC150
• 1948 - 1950 GMC FC152
• 1950 - 1950 GMC FC250
• 1950 - 1950 GMC FC251
• 1950 - 1950 GMC FC252
• 1950 - 1950 GMC FC253
• 1947 - 1955 GMC Truck

Pontiac Applications

• 1950 - 1954 Pontiac Catalina
• 1942 - 1954 Pontiac Chieftain
• 1948 - 1952 Pontiac Silver Streak
• 1954 - 1954 Pontiac Star Chief
• 1942 - 1952 Pontiac Streamliner
• 1942 - 1953 Pontiac Torpedo
