For use with specific 6 bolt bell housing numbers. *Adapter plate requires 1 hole drilled and 1 drilled & tapped into the bell housing.

• Early Model Bellhousing
• C3AA-6394-C 5 bolt pattern
• C5AA-6394-B 6 bolt pattern
• C5DA-6394-A 6 bolt pattern
• C9OA-6394-A 6 bolt pattern
• D2OA-6394-AA 6 bolt pattern

Bell housing modification is required on all original (1964 1/2-1970) and late model bell housings to adapt the Borg Warner “standard” and “World Class” T-5 SROD (single rod overdrive) five speed transmission to an early model Mustang, and to utilize the stock clutch linkage.

The modifications required, when using an original (1964 1/2-1970) bell housing, are to drill one clearance bolt hole and drill and tap a second bolt hole to attach the adapter/spacer plate to it. The spacer is required because of the longer transmission input shaft of the T5 transmission, and also adapts the T-5 mounting bolt hole pattern to the original bell housing.

If you do not intend to use the early model clutch linkage and are opting for a cable installation, you can use the late model bell housing and late model throw out arm as they are, without any modifications required.

Caution note - Always check the condition and fit of the crankshaft pilot bushing, since some T-5’s have a smaller diameter pilot.Problems such as clutch chatter and popping out of gear will occur if the pilot bushing fit is not correct.

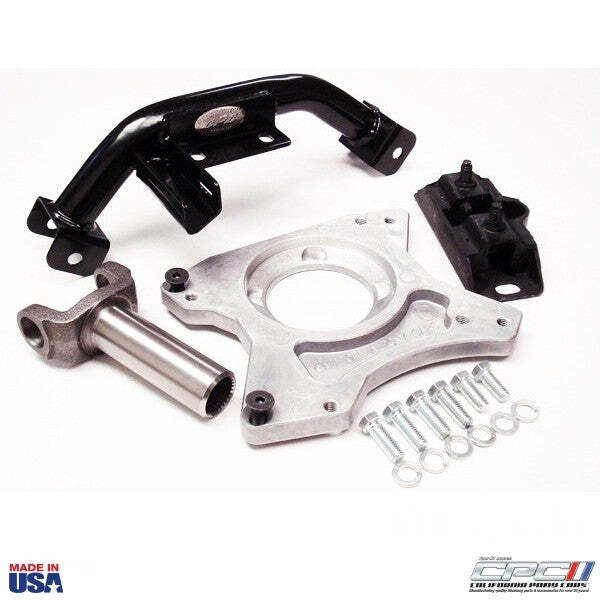

Kit Includes:

• Adapter Plate (TRA-650-526)
• Crossmember Bar With Parking Brake Bracket (TRA-656-522)
• Trans Mount Insulator (TRA-650-521)
• Drive Shaft Slip Yoke (TRA-650-517)
