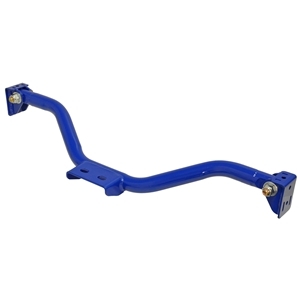

Whether altering drivetrain position or swapping in a nonfactory transmission, the weld-in transmission crossmember kit from Total Control Products is the correct part for the job. Sized to directly fit ‘64-70 Mustangs and ‘62-67 Novas, the crossmember has a maximum width of 29” and ships as an unassembled weld-together kit, allowing ultimate flexibility in positioning the drivetrain. By rotating the 1-1/4” diameter bent tube prior to installing the billet tube adapters drivetrain angle is adjustable with a maximum drop height of four inches. Additionally, the weld-on frame brackets can be positioned as needed along the length of the factory rail to easily accommodate transmissions of various lengths. The crossmember bracket accepts common GM-style urethane mounts for directly mounting to most commonly used transmissions. For 2005-up Ford Mustang manual or automatic transmission swaps, a simple adapter bracket is available to convert the three-hole vertical-plane bolt- attern to the common two-bolt pattern.

• Up to 4” crossmember drop height
• Maximum width of 29”
• Sturdy 1-1/4” diameter
• Solid billet-steel tube adapters
• Gusseted brackets
• Suitable for most commonly used transmissions
