Cab to frame mounting pad kit for your Ford truck

Features:
• Complete (36) Piece Kit
• Zinc Plated Hardware for Corrosion Resistance
• Installation Instructions
• Attaching Hardware Included

Note: This kit is for 2WD trucks only.

1967, 1968, 1969, 1970, 1971, or 1972 F100/F250 2 Wheel Drive

Kit Includes:
(8) Rubber Mounting Pads:
(16) Special Washers
(4) Bolts
(4) Sleeves
(4) Self-Locking Nuts
Installation Instructions

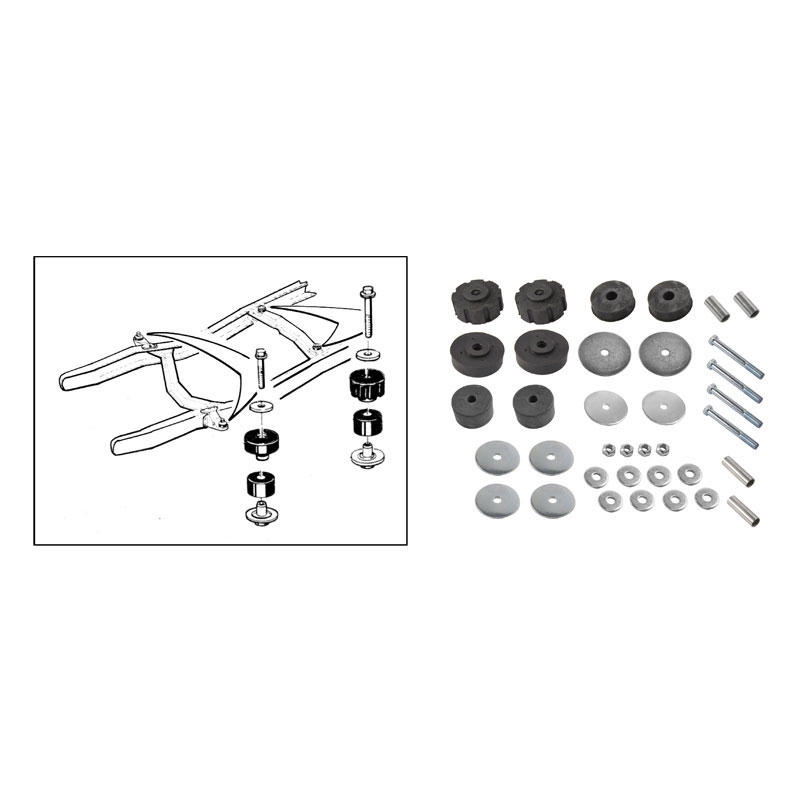

Complete Cab to Frame Mounting Pad Kit for a 1967-72 Ford Truck

These Dennis Carpenters cab to frame pad kit includes all the parts you should need to mount the 1967-72 Ford truck cab back onto it's frame.

36 piece kit features mounting pads that are made from high quality rubber and are molded to look, fit, and function as close to the originals as possible. The included hardware, such as the special washers, bolts, sleeves, and nuts allow for a time saving installation and are zinc plated to help them all resist the elements.

Kit Includes:

Rubber Pads:
     (x2):
     Outer Diameter: 2 3⁄4"
     Inner Diameter:     5⁄8"
     Pad Thickness:  1 3⁄8"
(x2):
Outer Diameter: 3 1⁄4"
Inner Diameter:     5⁄8"
Pad Thickness:        1"
(x2):
Outer Diameter: 2 3⁄8"
Inner Diameter:     5⁄8"
Pad Thickness:     7⁄8"
(x2):
Outer Diameter: 3 3⁄16"
Inner Diameter:       5⁄8"
Pad Thickness:    1 3⁄8"
Hardware:
     Cadmium Plated
     Flat Washer (x2):
     Outer Diameter: 3 1⁄8"
     Inner Diameter:    7⁄16"
Cadmium Plated
Flat Washer (x2):
Outer Diameter: 2 3⁄4"
Inner Diameter:    7⁄16"
Cadmium Plated
Flat Washer (x4):
Outer Diameter: 2 1⁄2"
Inner Diameter:    7⁄16"
Cadmium Plated
Flat Washer (x8):
Outer Diameter: 1 1⁄4"
Inner Diameter:    7⁄16"

     Cadmium Plated Bolts:
     7⁄16" - 20 x 3 5⁄8" (x4)
     7⁄16" - 20 x 4 7⁄8" (x2)
Cadmium Plated Spacer (x2):
Outer Diameter:     5⁄8"
Inner Diameter:    7⁄16"
Overall Length: 2 3⁄16"
Cadmium Plated Spacer (x2):
Outer Diameter:   5⁄8"
Inner Diameter:  7⁄16"
Overall Length: 1 3⁄8"
Cadmium Plated
Self Locking Nut (x4):
Thread: 7⁄16" - 20
SKU C7TZ-5400-S
Brand Dennis Carpenter
Shipping Weight 2.0000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.300m
Shipping Cubic 0.027000000m3
