1970- 72 Chevy Chevelle SS/Monte Carlo/El Camino & 71 GMC Sprint SP HDX Instruments From Dakota Digital HDX

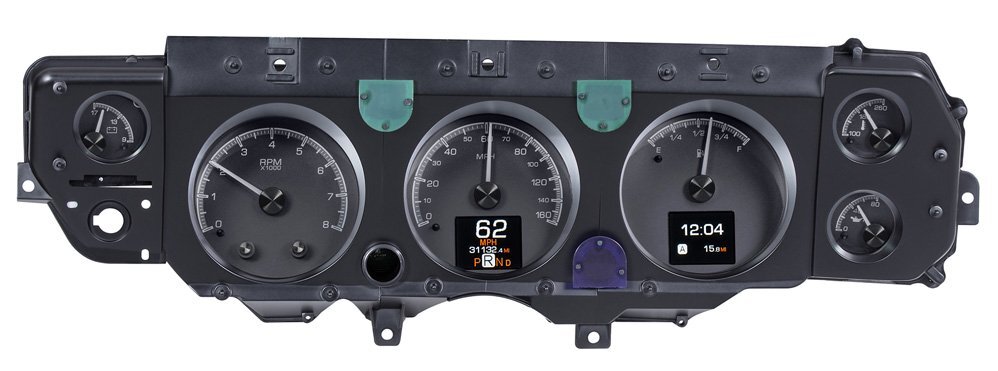

The King of the muscle cars still reigns supreme. Upgrade your 1970- 72 Chevelle or El Camino (SS-style dash) with a bolt-in instrument system boasting six analog gauge sweeps, coupled with a pair of TFT message center displays, which can be had with Black or Silver Alloy face styling. Original locations for turn signal, high beam, and brake indicators are updated with LEDs. Screws directly into original or aftermarket gauge carrier, available separately.

Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge.  With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal.

*Bezel not included, shown for visual/presentation purposes.

*System uses OEM or reproduction style bezel.

  • 1970-72 Chevy Chevelle SS/Monte Carlo/El Camino
  • 71 GMC Sprint SP
SKU DKD-HDX-70C-CVL
Model # HDX-70C-CVL
Barcode # #N/A
Brand Dakota Digital
Shipping Weight 3.6364kg
Shipping Width 0.356m
Shipping Height 0.152m
Shipping Length 0.610m
