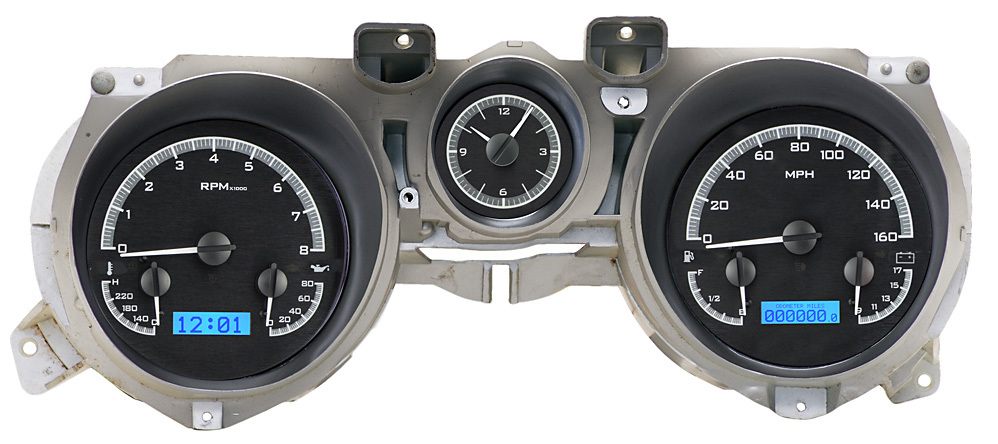

1971 - 1973 Ford Mustang Big Horse VHX Instruments - Black Face, Blue Display
SKU code: DKD-MHX-71F-CTR-K-B
For your 1971-73 “Big Horse” Mustangs that have main and center console gauges, look no further than our VHX system. Six analog gauge readouts that will fill up your stock bezels with dual LCD message centers capable of displaying plenty of information. Solid-state sensors are supplied, making this system an obvious choice when upgrading the drivetrain!
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
| Analog Gauges |
|
|
| Speedometer |
| ·0- 255 kmh |
|
|
| Tachometer |
| ·0- 8,000 RPM |
|
|
| Oil Pressure |
| ·0- 80 psi |
|
|
| Water Temperature |
| ·100- 260ºF (optional metric version 40- 120ºC) |
|
|
| Fuel Level |
| ·E, 1/4, 1/2, 3/4, F |
|
|
| Voltmeter |
| ·9- 17 VDC |
|
|
| Lighting |
| ·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face. |
|
|
|
Digital Message Centers |
|
|
| Standard Displays |
| ·Odometer (One time user settable, Million Mile) |
| ·Dual (A/B) Trip Meter (0- 9,999.9) |
| ·Clock (12 hour) |
|
|
| Performance Meters |
| ·0- 60 MPH Timer (0- 100 kmh) |
| ·1/4 mile time |
| ·1/4 mile end speed (trap speed) |
| ·High speed recall |
| ·High RPM recall |
|
|
| Gauges |
| ·Speedometer (0- 255 MPH/kmh) |
| ·Tachometer (0- 9,900 RPM) |
| ·Oil Pressure (0-100 psi displayed in 1 psi increments) |
| ·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments) |
| ·Voltmeter (9- 17 VDC) |
| ·Fuel Level (0-99% full) |
|
|
| Lighting |
| ·Auto-contrasting LCD display for optimal view in the brightest of sunlight. |
| ·LED backlit at night to match/ complete the look at night. |
|
|
|
Built-in Indicators |
| Indicators |
| ·Turn Signals (Left/ Right) |
| ·High Beam |
| ·Check Engine |
| ·Parking Brake |
| ·Cruise Control (On/ On & Engaged when vehicle is equipped) |
| ·Gear Position (Optional GSS-3000 sensor required) |
| ·4 x 4 (When vehicle is equipped) |
| ·Wait to Start (When vehicle is equipped) |
**Not all OEM indicator lamp functions will be replaced.
|
- 1971 - 1973 Ford Mustang
| SKU | DKD-MHX-71F-CTR-X-X |
| Brand | Dakota Digital |
| Shipping Weight | 3.5000kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.170m |
| Shipping Length | 0.700m |
