The Infinity ECU for manual transmission equipped 2003-05 Mitsubishi Evo VIII racing engines (Infinity 506 PN 30-7106 and Infinity 508 PN 30-7108) includes an engine-specific start-up calibration and connects to the engine via a Plug & Play harness that is sold separately (PN 30-3511). Begin by determining which Infinity ECU will best support the ancillary components in your manual transmission 4G63 engine using the Infinity Specifications Chart in the "Specs" tab.

Complete Stand Alone Engine Control
The Infinity ECU combines with the Plug & Play harness to replace the factory ECU. It controls all of the engine functions and the Plug & Play wiring harness adapter eliminates the need for cutting and splicing wires.

Plug & Play Harness with Expansion Port
AEM’s sealed, weatherproof Plug & Play harness (sold separately) includes a Lambda connector, an AEMnet connector for communication with other AEMnet enabled devices and an auxiliary connector with a High Performance DTM-Style 12P connector for adding common aftermarket sensors. Visit the "Features" tab for more information about the Mitsubishi Evo VIII Plug & Play harness expansion port.

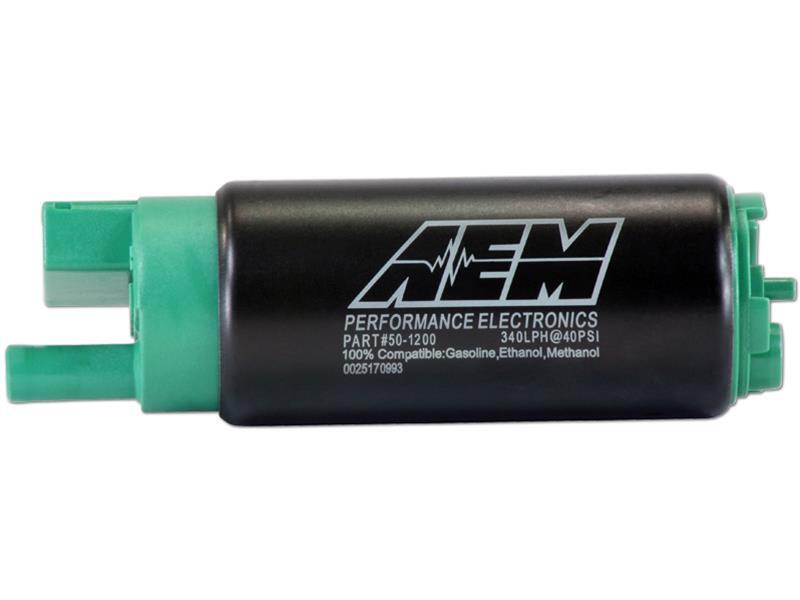

TECHNICAL SPECS:
Weight: 12.5oz (354grams)
Outside Diameter: 39mm OD
External Materials: Black plated steel with laser etching, green end caps
Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline
Outlet Fitting: 8 mm hose clamp. Offset
PRV Activation: 80 PSI
Impeller Design: Single Scroll Ceramic Turbine

VOLTAGE SPECS:
Connector Terminal: 6 mm Spade (pos/neg)
Min Voltage Input: 6 volts
Max Voltage Input: 18 volts
Current Draw (40 psi): 12 amps (13.5v)
Current Draw (80 psi): 15 amps (13.5v)
Fuse: 20 amps (13.5v)
