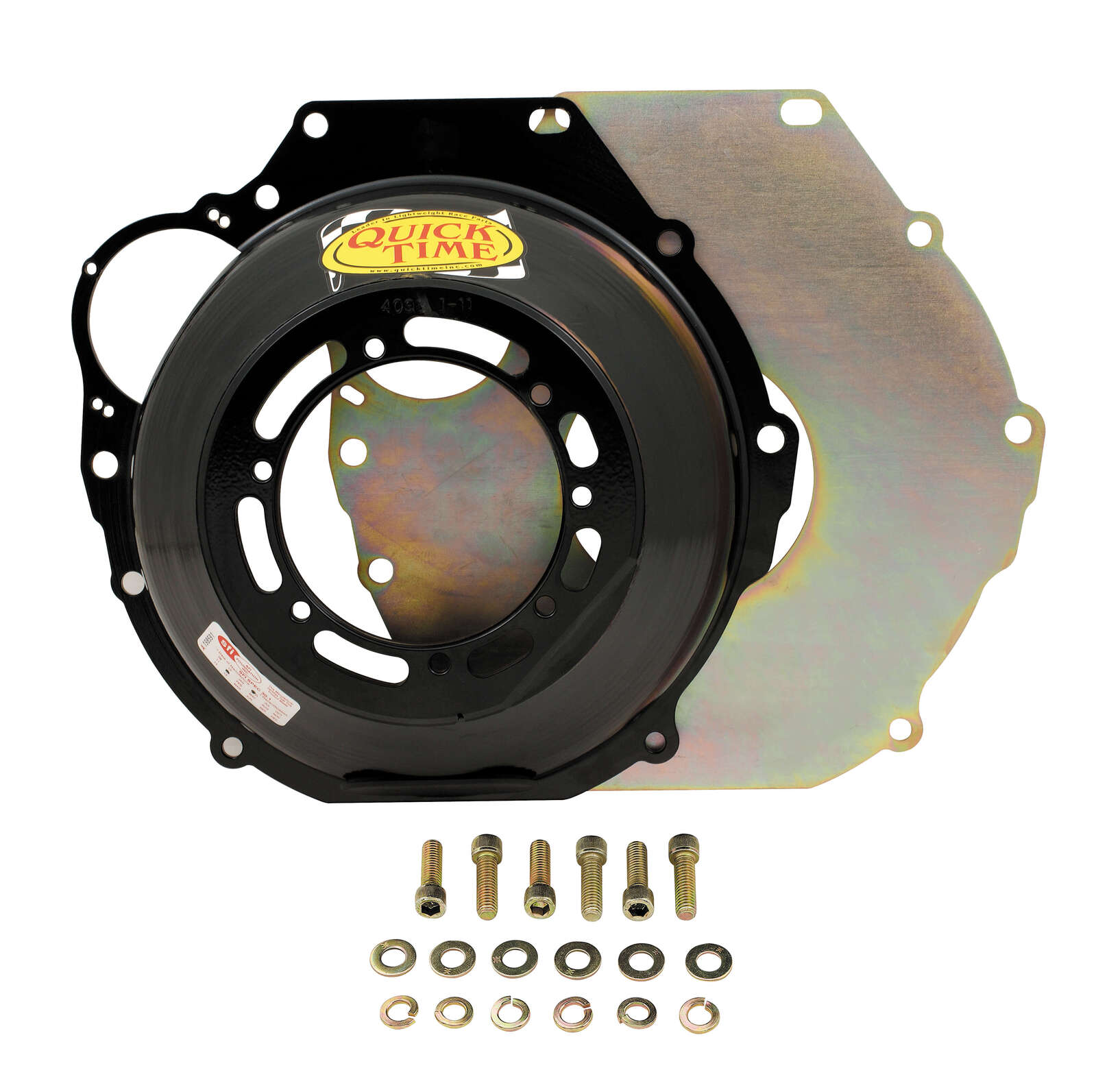

The Quick Time RM-5000 bellhousing connects Ford Australian 4L, BA, BF, FG 6-Cylinder Barra engines. to Ford TKO 500-600, TR3550, T5 Mustang transmissions. For use with mechanical, pull cable and hydraulic clutches. This bellhousing is S.F.I. certified 6.1 which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter-mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be lightweight while maintaining the protection you desire.

Features:

  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
  • QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
  • Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
  • 100% built in the USA
  • Patent on 16 points of Bellhousing Design & Process
Brand Quick Time
Certification 6.1 SFI
Clutch 10.5" or 11" Clutch Disc
Clutch Diameter 10.5 inch or 11 inch
Clutch Operation Mechanical or Hydraulic
Color Black
Emission Code 5
Engine Ford Falcon Barra 4.0 BA
  Ford Falcon Barra 4.0 BF
  Ford Falcon Barra 4.0 FG
Engine Make Ford
Flywheel 157/162 Tooth
Height 6.95 inch
Make Ford
Material Steel
Patented yes
Product Type Bellhousing
SFI Approved Yes
SFI Certification 6.1
Trans Bore 5.120
Trans. Bore Diameter Universal 4.850/4.910 inch
Transmission T5 Ford
  TKO 500/600 Ford
  TKX Ford
  TR3550
Transmission Type Manual
Weight 20#
UPC 084041031193
Part Number RM-5000
  • BA BF FG 4.0 6 Cylinder
SKU RM-5000
Barcode # 084041031193
Brand Quicktime
Shipping Weight 17.0000kg
Shipping Width 0.490m
Shipping Height 0.200m
Shipping Length 0.490m
Unit Of Measure ea
