Cruise Control for GM LS Drive-by-Wire Engines From Dakota Digital

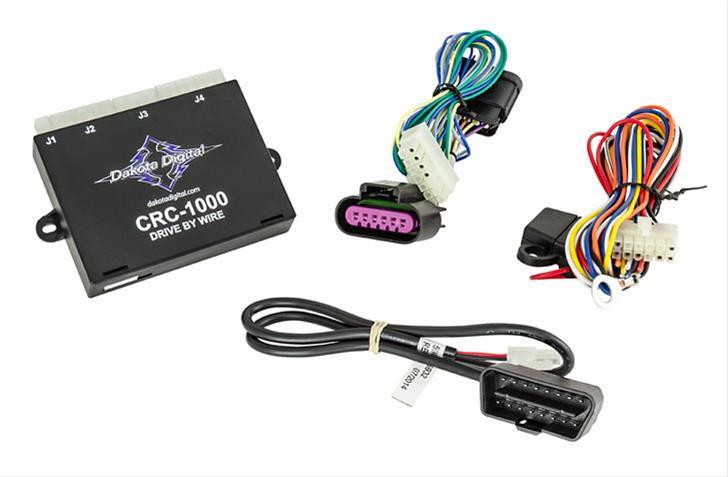

Direct plug-in cruise control for GM LS drive-by-wire engines, the CRC Series plugs directly into your OEM LS throttle pedal for not only simple installation, but reliable operation and connectivity.  Self-learning calibration makes this system a snap to use, with no DIP switches or charts to follow!The CRC-1000 obtains its information from the included diagnostic connector and throttle pedal connections, allowing an extremely simple installation for drive-by-wire GM CAN bus applications.The CRC-1000 is ideal for applications using all matched OEM drivetrain control components.The CRC-2000 variation features a discrete VSS input (fixed 4,000 PPM, your application may require the use of an SGI-100BT if a 4,000 PPM signal is not present), usable when a diagnostic connector is unavailable.  While still plugging directly into the throttle pedal in these LS-based systems, the CRC-2000 provides a flexible approach, perfectly suited to cases with a mixture of LS-based OEM and specific aftermarket powertrain control components. Both the CRC-1000 and CRC-2000 fit:

• 2005-2013 Corvette
•
• 2008- up GM Full Size Truck/Van/SUV with throttle pedal contain inline 6-pin connector
• 2010-2015 Camaro2008-2010 Pontiac G8 GT (verify pedal connector type first)GM Connect & Cruise packages

* Does not fit Pontiac GTO or Holden applications

* Neither the CRC-1000 or CRC-2000 are considered universal cruise control packages, their proper operation can only be expected when interfaced with the LS-based applications outlined above.  Any ECM speed calibration, or software updates which have affected the pedal specifications may prevent the CRC-1000 or CRC-2000 from functioning. Your choice of switch/turn signal lever is supplied. Inputs for power, ground, and a connection to your existing brake light switch are all that is required (along with VSS input on CRC-2000). Additionally, an output is provided for a cruise-on indicator. Module measures 3.5" x 3.5" x .75"
