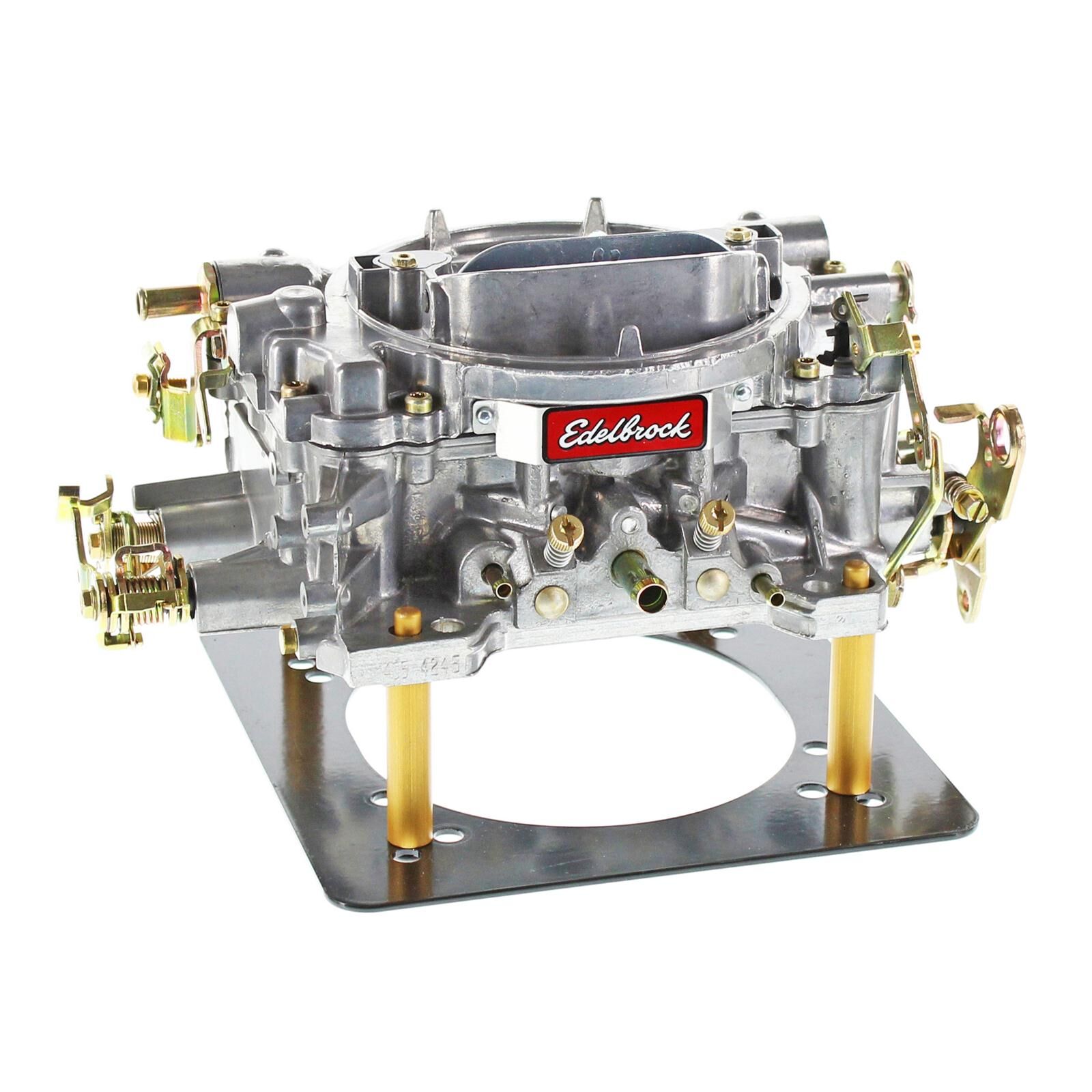

The Edelbrock 1405 Performer Series 600 CFM manual choke carburetor is a precisely tuned, quality-built carburetor that can handle the rigors of daily driving while delivering consistent, reliable street performance from day to day. Several characteristics make the 1405 Performer Series 600 CFM manual choke carburetor an outstanding street performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to "hold a tune", so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that resists warping and is compatible with gasohol and blended fuels. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable, user-friendly and is easily tunable for miles and miles of trouble-free operation.

Manufacturer Edelbrock
Application Universal
UPC 00085347014057
Condition New
Series Performer
Metering Rod Size .070 x .047 in
Gasket Or Seal Included Yes
Barrel Quantity 4 Barrel
Flange Type Square
Secondary Jet Diameter 0.095
Main Venturi Diameter 1.19
Body Height 3.25
Bore Diameter Primary Bore 1.44; Secondary Bore 1.69
Spring Force 5" Hg (Orange)
Warranty

3 Months



Installation Notes
  • Electric choke #1478 can be added if needed; Recommended cubic inch displacement for big block dual quad applications is 396-502+ c.i.d.; Performer Series Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000; Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. These fuels can also damage other fuel system components, unless specifically designed for use with alcohol fuels; The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor
Choke Type Manual
Finish Satin
Marine Approved No
Material Aluminum
CFM Rating 600 cfm
Primary Jet Diameter 0.100
SKU 1405
Barcode # 085347014057
Brand Edelbrock
Shipping Weight 5.0000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.300m
Shipping Cubic 0.027000000m3
