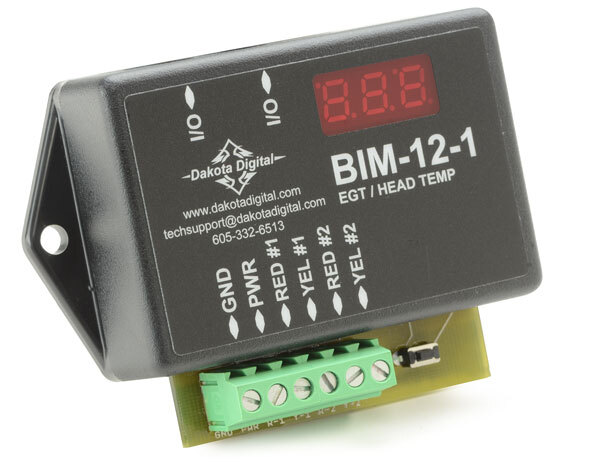

The Dakota Digital BIM-12-1 Exhaust Gas Temp (EGT) and Cylinder Head Temp (CHT) Module allows for up to 2 temperature inputs (ie 2 EGT or 2 CHT or 1 EGT & 1 CHT readings).



Display Available Senders Res. High Warning
HEAD

SEN-11-4, SEN-11-5, SEN-11-6, SEN-11-7, SEN-11-8

2°F 300- 600°F
HEAD A SEN-11-4, SEN-11-5, SEN-11-6, SEN-11-7, SEN-11-8 2°F  300- 600°F
HEAD B SEN-11-4, SEN-11-5, SEN-11-6, SEN-11-7, SEN-11-8 2°F 300- 600°F
EGT SEN-12-4, SEN-12-5, SEN-12-6, SEN-12-7   5°F 1140-1760°F
EGT A SEN-12-4, SEN-12-5, SEN-12-6, SEN-12-7 5°F 1140-1760°F
EGT B  SEN-12-4, SEN-12-5, SEN-12-6, SEN-12-7 5°F 1140-1760°F

*The BIM-12-1 is supply this information to the VHX, HDX, RTX and VFD3 systems with a black plastic control module. For any BIM-compatible control boxes which contain the 3.5mm headphone jack BIM input, add part number 394193 adaptor harness. Earlier instrument systems with an aluminum control module are not capable of BIM connectivity.

SKU DKD-BIM-12-1
Model # BIM-12-1
Barcode # 670219089686
Brand Dakota Digital
Shipping Weight 0.9091kg
Shipping Width 0.076m
Shipping Height 0.051m
Shipping Length 0.102m
