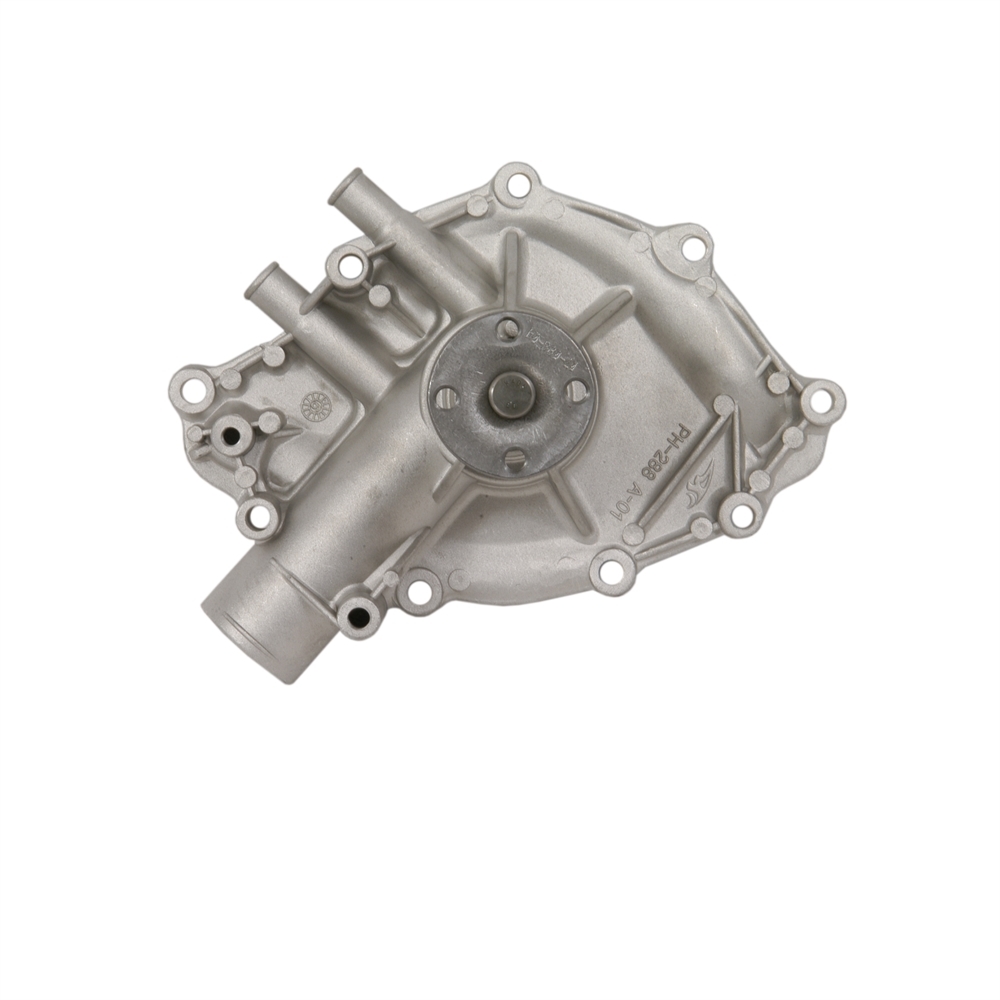

Flowkooler designed a high flow water pump for the 289 Hi Po engine with a CNC machined billet impeller with 16 vanes, integrated shrouding and a reduced casting-to-impeller vane clearance.  It achieves greater flow rates, higher head pressure and a more efficient flow. The impeller color is due to Type II Class II military grade surface coating which protects against corrosive fluids.

FlowKooler introduced the first hi flow pumps and continues to improve impeller design. Why is increased flow so important to cooling a hot Ford engine? Because it has been proven time and time again that reducing the cycle time between the heat source and the heat sink creates more opportunities to shed heat and drop engine temperatures.

From 0-3,300 RPM…Nothing Beats a FlowKooler!



General Specifications:
Type of Material of Pump Body Aluminum
Number of Blades on Impeller 16 CNC Aluminum
Direction of Rotation CW
Fan Hub Working Height 5 1/8"
Inlet outside diametert 1 3/4"
Hose Connections: 1st 2nd
Gender M M
Diameter 5/8" 5/8"
Threaded No No



Other Special Features:
  • Impeller chamber is directional to clockwise rotation
  • Lower radiator hose outlet on right side (passenger side)
  • Doesn't use backing plate
  • For Ford 289 high-performance factory applications only.  Standard 289s often use the 1681 pump
  • Alternative Part Numbers  C2OE8505B, C2OE8505C, C2OZ8501A, C2OZ8501B, C2OZ8501C, C3OE8505A, C3OZ8501A, C3OZ8501B, C5AE8505C, C5AZ8501B, C5AZ8501K, C5OZ8501A
Parts Contained in Box:
Mounting Gasket, 5 1/8" x 5/16" Bolt, 2 1/2" x 5/16" Bolt, Installation Sheet, FlowKooler Decal



Compatibility:

  • 1962 Ford Club V8 221 3.6L
  • 1962 Ford Country Sedan V8 221 3.6L
  • 1962 Ford Falcon V8 221 3.6L
  • 1962 Ford Ranch Wagon V8 221 3.6L
  • 1963 Ford 300 V8 260 4.3L
  • 1963 Ford Ford 300 V8 260 4.3L
  • 1963 Ford Sprint V8 221 3.6L
  • 1963 Ford Sunliner V8 260 4.3L
  • 1964 Ford Club Wagon V8 260 4.3L
  • 1964 Ford Custom 300 V8 260 4.3L
  • 1964 Ford Sprint V8 289 4.7L
  • 1964 Ford Victoria V8 289 4.7L
  • 1965 Ford Custom 300 V8 289 4.7L
  • 1968 Ford GT40 V8 289 4.7L
  • 1968 Ford GT40 V8 427 7.0L
  • 63-62 Ford Club Wagon V8 221 3.6L
  • 63-62 Ford Fairlane V8 221 3.6L
  • 64-62 Ford Club V8 260 4.3L
  • 64-62 Ford Custom 500 V8 221 3.6L/260 4.3L
  • 64-62 Ford Fairlane V8 260 4.3L
  • 64-62 Ford Galaxie/Galaxie 500 V8 260 4.3L
  • 64-62 Ford LTD Crown Victoria V8 260 4.3L
  • 64-63 Ford Country Squire V8 260 4.3L
  • 64-63 Ford Falcon V8 260 4.3L
  • 64-63 Ford Sprint V8 260 4.3L
  • 64-63 Ford Sunliner V8 289 4.7L
  • 64-63 Ford Victoria V8 260 4.3L
  • 65-62 Ford Country Sedan V8 260 4.3L
  • 65-62 Ford Custom 500 V8 289 4.7L
  • 65-62 Ford Fairlane V8 289 4.7L
  • 65-62 Ford Galaxie/Galaxie 500 V8 289 4.7L
  • 65-63 Ford Country Squire V8 289 4.7L
  • 65-64 Ford Mustang V8 260 4.3L
  • 65-64 Ford Ranch Wagon V8 260 4.3L
  • 66-65 Ford Falcon V8 289 4.7L
  • 67-63 Ford Country Sedan V8 289 4.7L
  • 67-65 Ford LTD Crown Victoria V8 289 4.7L
  • 67-65 Ford LTD V8 289 4.7L
  • 67-65 Ford Mustang V8 289 4.7L
  • 68-63 Ford Ranch Wagon V8 289 4.7L
  • 260 289 Ford Hi Po
SKU FK-1680
Brand FlowKooler
Shipping Weight 5.0000kg
Shipping Width 0.350m
Shipping Height 0.020m
Shipping Length 0.020m
