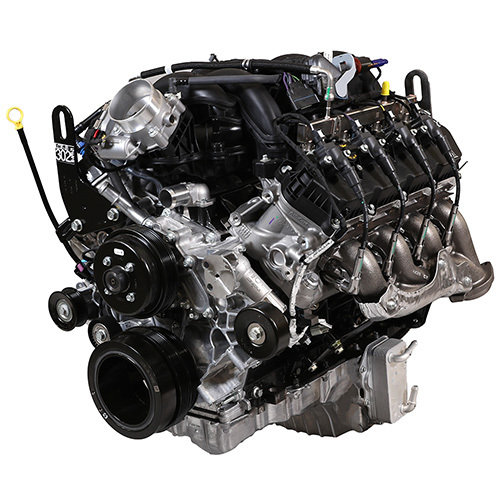

The ALL-NEW 7.3L V8 Ford gasoline crate engine from the 2020 F250 Super Duty features:

  • 7.3L displacement
  • Bore 107.2 mm x stroke 101.0 mm
  • Cast iron block
  • Aluminum cylinder heads
  • Intake valve diameter 55.13 mm
  • Exhaust valve diameter 42.53 mm
  • Lift (intake/exhaust) 13.67 mm / 15.26 mm
  • Cam-in-block OHV design w/variable cam timing
  • Forged steel crankshaft
  • Cast Aluminum pistons
  • 430 HP at 5,500 rpm
  • 475 lb/ft of torque at 4,000 rpm
  • 10.5:1 compression
  • Port fuel injection
  • Firing order: 1-5-4-8-6-3-7-2



The engine assembly includes:

  • Composite Intake manifold and 80 mm throttle body
  • Left and Right exhaust manifolds
  • 8 quart aluminum oil pan/cooler
  • Ignition coils and wires
  • Production flex plate
  • M-6038-73 shipping and storage cradle
  • Factory lift brackets
  • Bellhousing bolt pattern same as 4.6/5.4 and 5.0 Coyote
  • Engine weight: 580 lbs.



For FEAD and control pack information, please contact the Ford Performance Techline.

SKU M-6007-73
Shipping Weight 35.0000kg
Shipping Width 0.100m
Shipping Height 1.150m
Shipping Length 0.100m
Shipping Cubic 1.150000000m3
