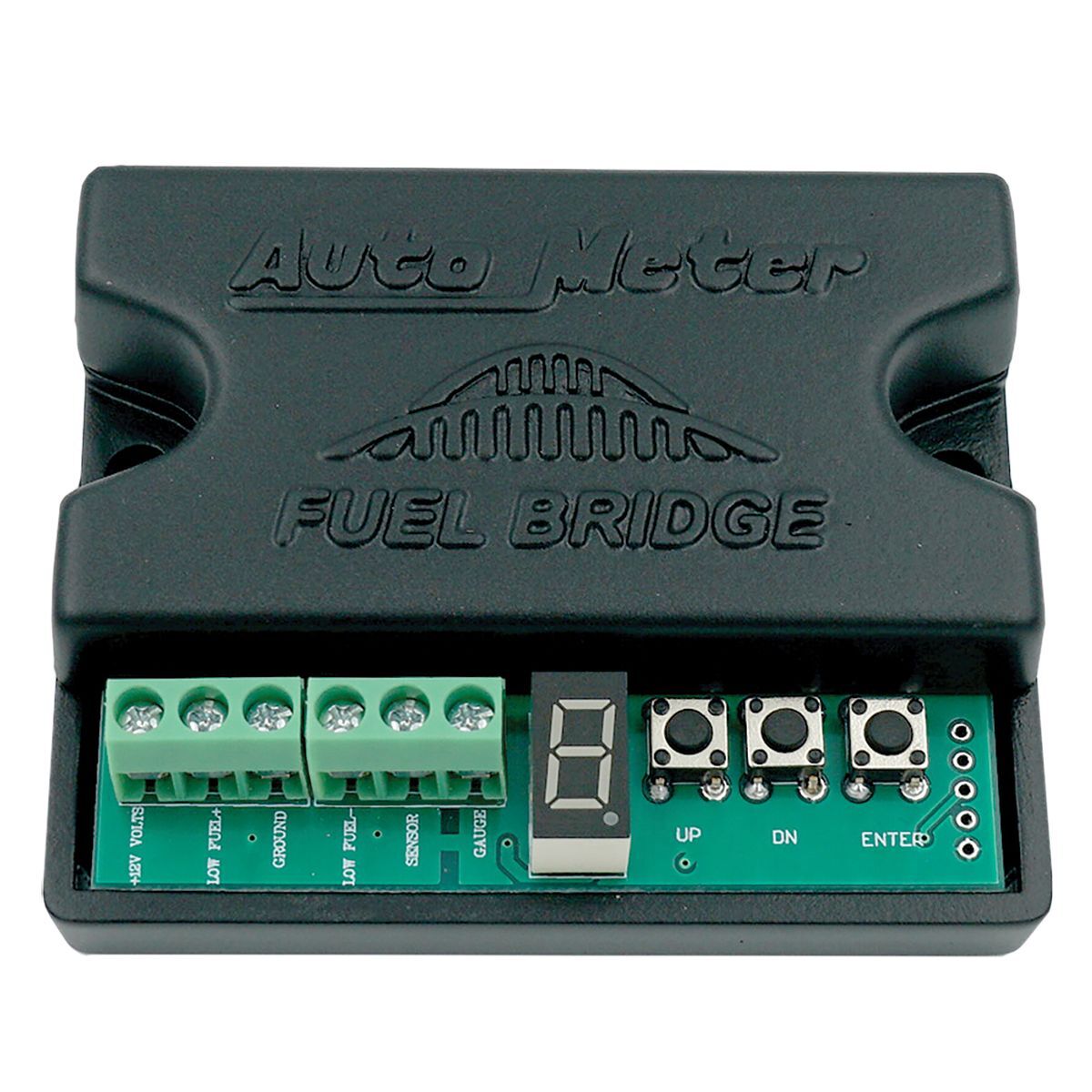

The Fuel Bridge wires in between your fuel level gauge and sending unit and allows you to use any AutoMeter fuel level gauge with any stock or aftermarket sending unit. The triple push button with LED display allows for easy set up. This unit is a compact size at 3 1/8" wide x 2 1/2" tall x 3/4" thick. A low fuel level warning is available at 10% and off at 15%. It can turn on an LED or relay.

Feature Points

• Allows you to use any AutoMeter fuel level gauge with any stock or aftermarket fuel sending unit
• Three push buttons with LED display for easy set up
• Low fuel level warning at 10% and off at 15% with ability to trigger LED or relay
• 8 pre-programmed resistance ranges for popular fuel level sending units
• Configurable option with linear adjustments at 5 points (F, ¾, ½, ¼, & E) anywhere between 0-1000 or 1000-0 ohms
• Compact size - 3“ x 2-½" x ¾"
• Pre-programmed for the following: 240/33, 0/90, 0/30, 16/158, 73/10 (linear and non-linear), 10/180, 40/250

*Note: Not compatible with Auto Meter Full Sweep, stepper motor, programmable fuel gauge. Not compatible with the InVision series digital dash display
