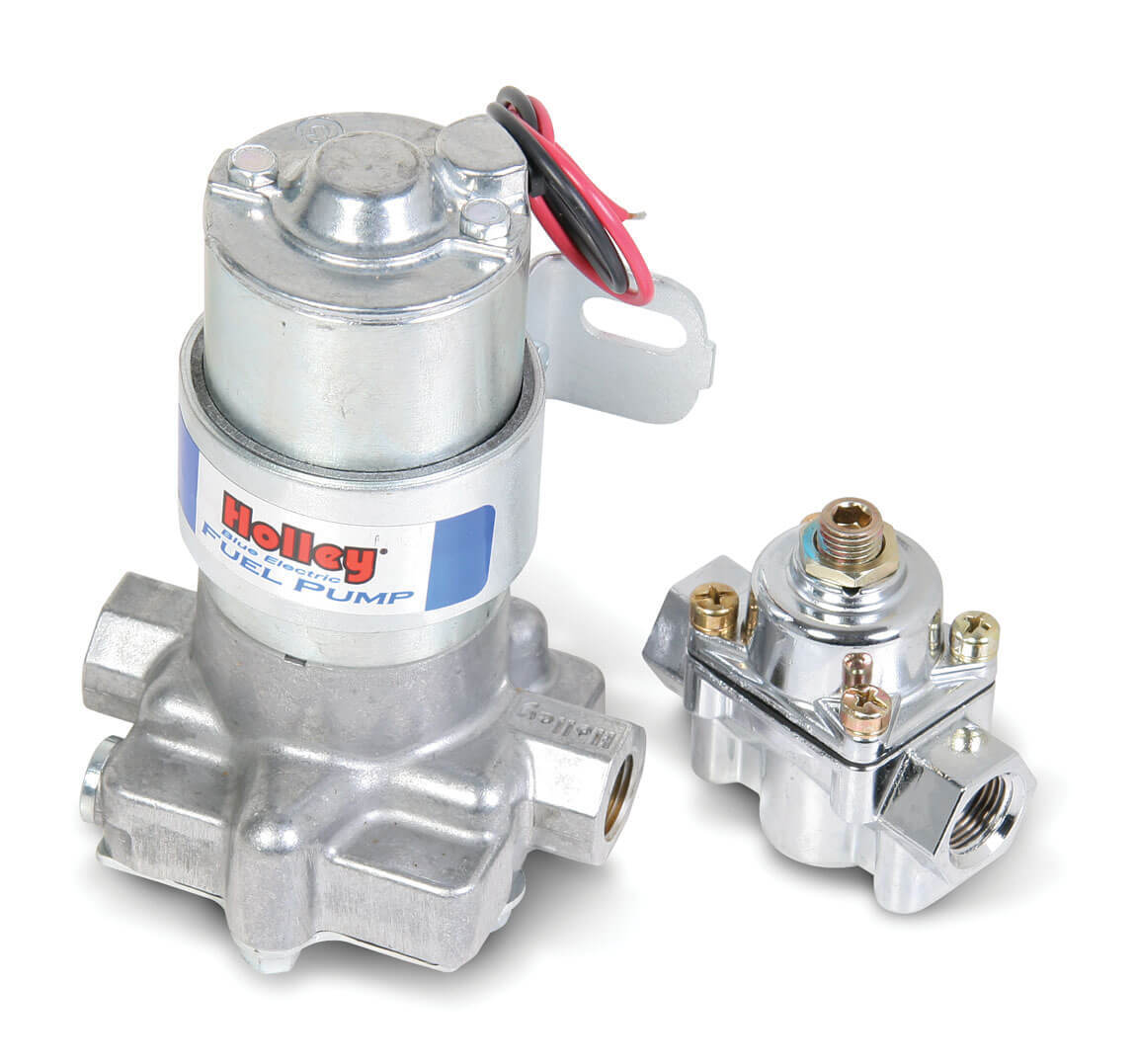

The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package.

Features:

  • Tumble polished billet look
  • Lower housing casting designed for enhanced fuel flow
  • Motor draws only 3 amps current
  • Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
  • Improved design for street/strip applications
  • Not designed for use on aircraft of any type.
  • Distinctive “Blue” logo
  • Flows 110 GPH (free flow)
  • Flows 88 GPH at 9 psi
  • maximum pressure is 14 psi
  • Includes P/N 12-803 fuel pressure regulator
  • Provides constant fuel flow with no pulsation
  • Has externally accessible pressure relief valve (max 14 psi)
  • Rotor/vane pump design is more tolerant of contaminated fuels
  • Weighs only 3 lbs
  • Includes mounting bracket
  • Repair kits are readily available
  • Can be serviced from the pump end
  • Not compatible with alcohol or methanol fuels
  • Use of safety shut-off switch, P/N 12-810, strongly recommended
  • Not designed or recommended for use with fuel injection systems



Application Universal
Bracket Color Silver
Brand Holley
Emission Code 5
Free Flow GPH 110
Free Flow LPH 416
Fuel System Carbureted
Fuel Type Gasoline
Inlet Size 3/8 inch NPT
Material Aluminum
Motor Finish Silver
Outlet Size 3/8 inch NPT
Product Type Fuel Pump
Pump Body Color Silver
Warranty Limited 90 Day
UPC 090127484296
Part Number 12-802-1
SKU 12-802-1
Barcode # 090127484296
Brand Holley
Shipping Weight 0.2000kg
Shipping Width 0.120m
Shipping Height 0.020m
Shipping Length 0.040m
Shipping Cubic 0.000960000m3
