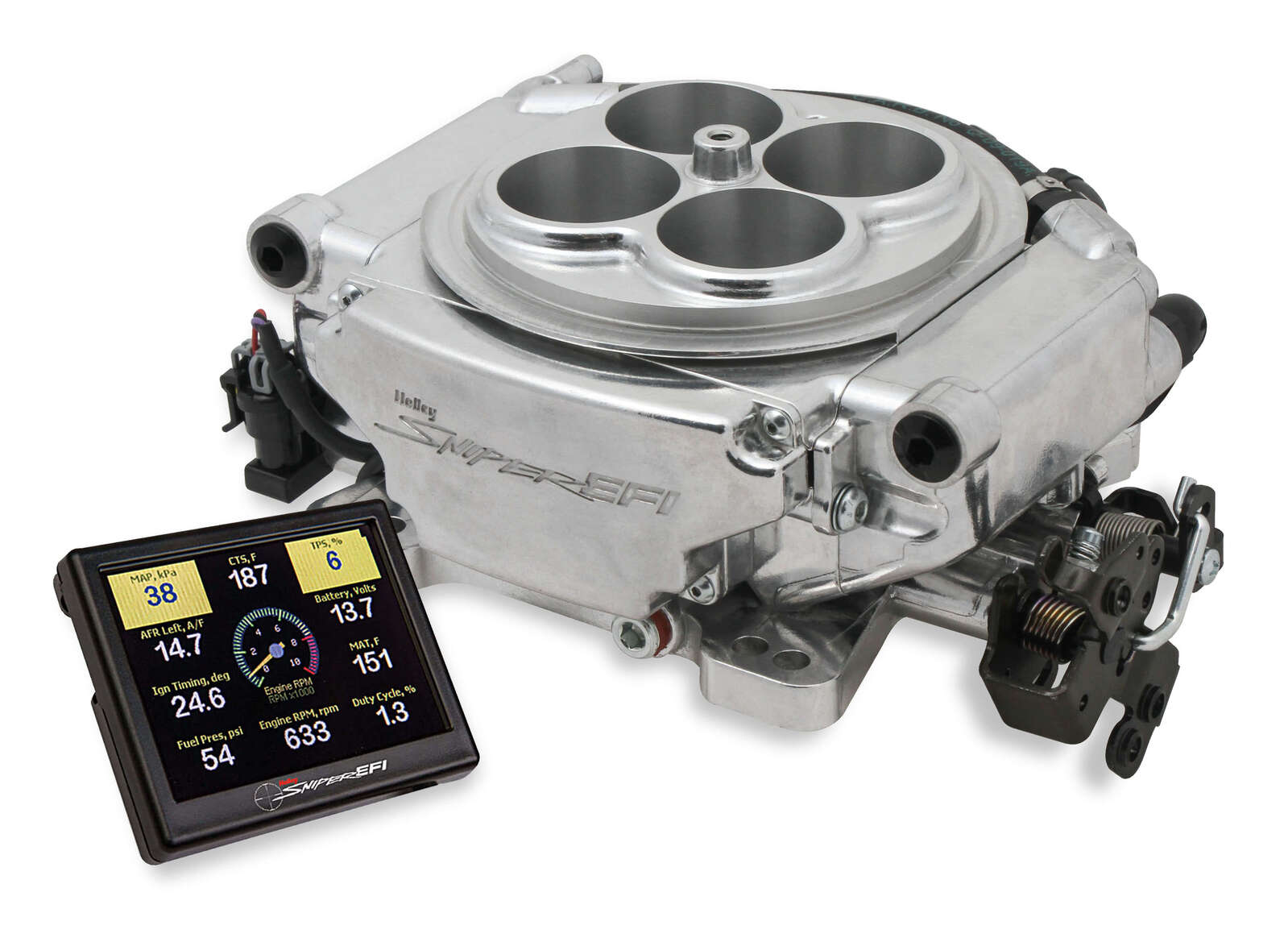

Holley just brought EFI within range with Sniper EFI! Introducing Sniper EFI! Sniper EFI is economically priced so you can have all the benefits of Fuel Injection and still have money to finish or upgrade the rest of your ride! Perfect for street rods, muscle cars, off-road trucks, or nearly any carbureted vehicle. A Sniper EFI system can put an end to cold start issues, hesitations, vapor lock, and flooding. We also offer a full line of Sniper Hyperspark distributors, Sniper ignition boxes, Sniper coils, and other ignition components for those looking to round out their ride with a complete Sniper EFI, Ignition, and Fuel system! Upgrade to Sniper EFI and get the tactical accuracy of EFI today!

Features:

• Dual Pattern bolt on carburetor replacement, designed to fit 4150 Flange & Spread Bore manifolds - (Spread Bore Sealing Plate Part #9006 is recommended)
• Throttle body mounted ECU – no extra boxes to mount
• Supports up to 650hp with Four 100 Lb/Hr Injectors!
• Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
• Internal fuel pressure regulator eliminates the hassle of plumbing an external fuel pressure regulator (Preset to 58.5 PSI)
• Integrated ignition timing control & coil driver
• High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays.
• Simple Calibration Wizard (Answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
• Self-tuning ECU means you don't have to be a computer/tuning wiz to have EFI!
• Available in base & master kits (Master kits include complete fuel system consisting of; 20ft of 3/8" Vapor Guard Fuel Hose, 12-920 Fuel Pump, Filters, necessary hardware and bulkhead fitting to return fuel into the tank!)
• The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides realtime Fuel Map Learn!
• OEM Style TPS/IAC and Fuel Pressure regulator, for years of dependable service.
• Included clamp-on oxygen sensor kit ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
• Certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance. Making Sniper EFI the perfect choice for carburetor to marine fuel injection conversions!
• A Flame Arrestor is REQUIRED for marine installations, such as part number, 720-1 or 720-13
• Patent Pending
• NOTE: Please be aware injector noise is a normal occurance

• Brand	Holley Sniper EFI
  CFM	800
  Coast Guard Approved	Yes
  Emission Code	3
  Finish	Shiny
  Flange Style	Dual Bolt Pattern
  Fuel Pressure	58.5 PSI
  Height	3.28"
  Injector Size	100 lb/hr @ 58.5 PSI
  Inlet / Outlet Size	9/16-18 Female O-Ring (AN 6)
  MAP Sensor	2Bar
  Max Horsepower Rating	650 Naturally Aspirated
  Model	4150 EFI Conversion Throttle Body
  Product Type	Sniper EFI
  Transmission	700R4/200R4
  	TH350
  UPC	090127728994
  Part Number	550-510
