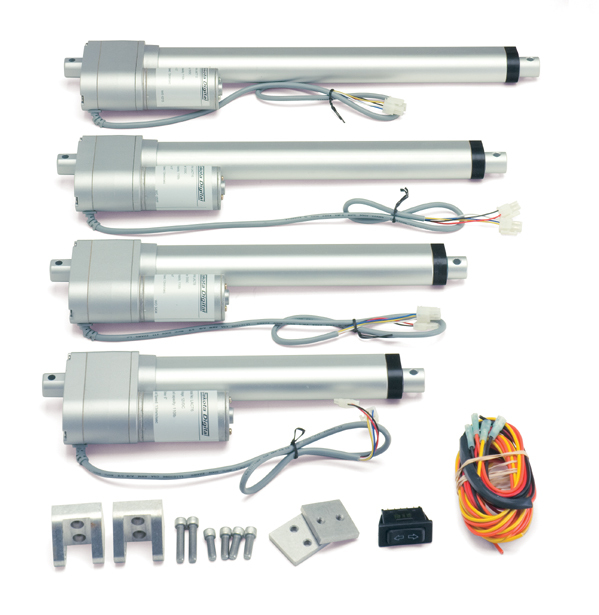

All new linear actuators (LACT series) provide 110 lbs of pulling and pushing force and come in 6", 8" , 10"  and 12" lengths to accommodate a variety of uses. The actuators can be used in applications from lifting trunk lids and tonneau covers, amplifier racks, compartment covers and storage drawers. Each unit has built in limit switches and comes complete with machined aluminum mounting brackets, control switch and wiring harness.

Mounting Plate Dimensions:

  • 1-1/8" x 1-1/2"W

LACT-12 - 12" Linear Actuator - (Length: 17-1/2" retracted to 29-1/2" extended in 21 sec.s)
LACT-10 - 10" Linear Actuator - (Length: 15-1/2" retracted to 25-1/2" extended in 17 sec.s)
LACT-8 - 8" Linear Actuator - (Length: 13-1/2" retracted to 21-1/2" extended in 13 sec.s)
LACT-6 - 6" Linear Actuator - (Length: 11-1/2" retracted to 17-1/2" extended in 10 sec.s)

SKU DKD-LACT-XX
Barcode # #N/A
Brand Dakota Digital
Shipping Weight 1.8182kg
Shipping Width 0.076m
Shipping Height 0.432m
Shipping Length 0.102m
