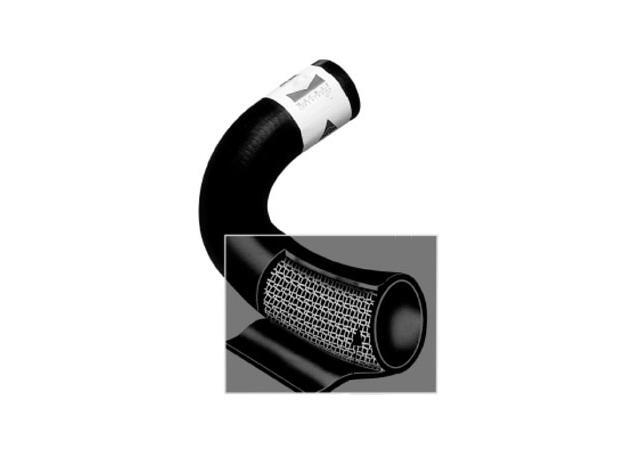

45° & 90° UNIVERSAL Hose BENDS - FUEL & OIL

The 45° & 90° moulded Fuel & Oil Hoses use two constructions depending on size. Sizes 8mm to 19mm ID are suitable for low pressure fuel applications and are manufactured using a Nitrile (NBR) rubber tube, lock-stitch knitted Polyester fibre reinforcement, with an oil resistant Hypalon® (CSM) rubber outer cover for maximum heat and ozone protection.

Sizes 25mm to 63mm ID are suitable for fuel filler and turbo intercooler applications and are manufactured with an OE Grade Nitrile/PVC (NBR/PVC) blended rubber tube and cover for Fuel, Oil and ozone resistance, with a knitted high tensile strength Para-Aramid fibre for maximum burst protection.

Both constructions are suitable for use with leaded and unleaded petrol, Ethanol blended fuels up to E85, Diesel & Biodiesel fuels, lubricating oil as well as crankcase and fuel vapour applications.

Exceeds Fuel Hose Specification SAE J30R6

Working Temperature Range -34°C to 100°C (-29°F to 212°F)

16mm (5/8") ID x 300mm x 300mm Arm Lengths - SAE J30R6 - Nitrile Rubber

SKU UHB16-300N
Barcode # 9313699705264
Brand Mackay
Shipping Weight 0.1750kg
Shipping Width 0.250m
Shipping Height 0.025m
Shipping Length 0.420m
