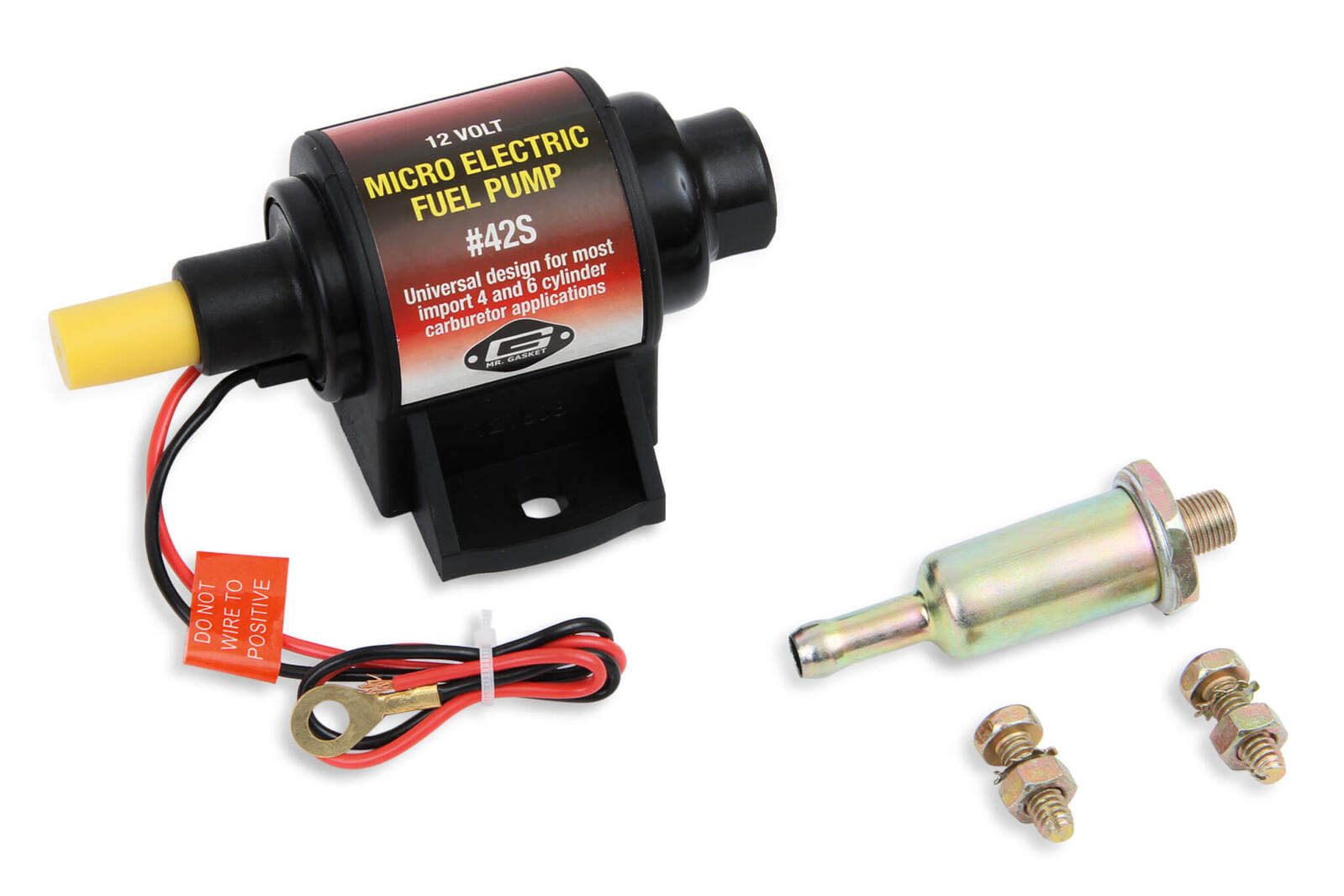

Gravity fed type pump with simple two-wire design. Works on 12 Volt negative ground systems only. Includes fittings and mounting hardware along with easy to follow DIY instructions. Pumps require approximately one amp average draw at maximum delivery. Flow rate is 28 gallons per hour (GPH) at 2 to 3-1/2 pounds per square inch (PSI). Universal design for most import 4 & 6-cylinder carburetor applications. Please see part #12S for V8 gasoline applications, part #12D for diesel applications or part #12E for Ethanol, Methanol, E85 and Race Fuel applications. Solid-state worry free electronics. Eliminates vapor lock and flooding. Works well as a fuel transfer, booster, or stand-alone pump. Not recommended for diesel, methanol, ethanol, E85 or race fuel applications!!

Features:

  • Solid-state Worry Free Electronics
  • Internal Pressure Regulating
  • Universal Design Allows For Easy Installation
  • No Diaphragms Or Mechanical Parts To Wear Out
  • Makes An Excellent Fuel Transfer or Booster Pump
  • Hose Barbs Fit 5/16" Fuel Hose
  • Self-priming, 2 wire design
  • Eliminates vapor lock and flooding



Application Universal
Brand Mr. Gasket
Color Black
Emission Code 5
Free Flow GPH 28
Fuel Type Gasoline
Hose Size 5/16
Inlet Size 1/8 inch NPT
Material Polymer
Max Pressure 3.5 psi
Product Type Fuel Pump
Warranty Limited 90 Day
Weight 1.2000
UPC 084041996287
Part Number 42S

 Note: Not recommended for diesel, methanol, ethanol, E85 or race fuel applications! Must be mounted within 12" of fuel tank.

SKU 42S
Barcode # 084041996287
Brand MR Gasket
Shipping Weight 0.6500kg
Shipping Width 0.020m
Shipping Height 0.020m
Shipping Length 0.020m
Shipping Cubic 0.008000000m3
