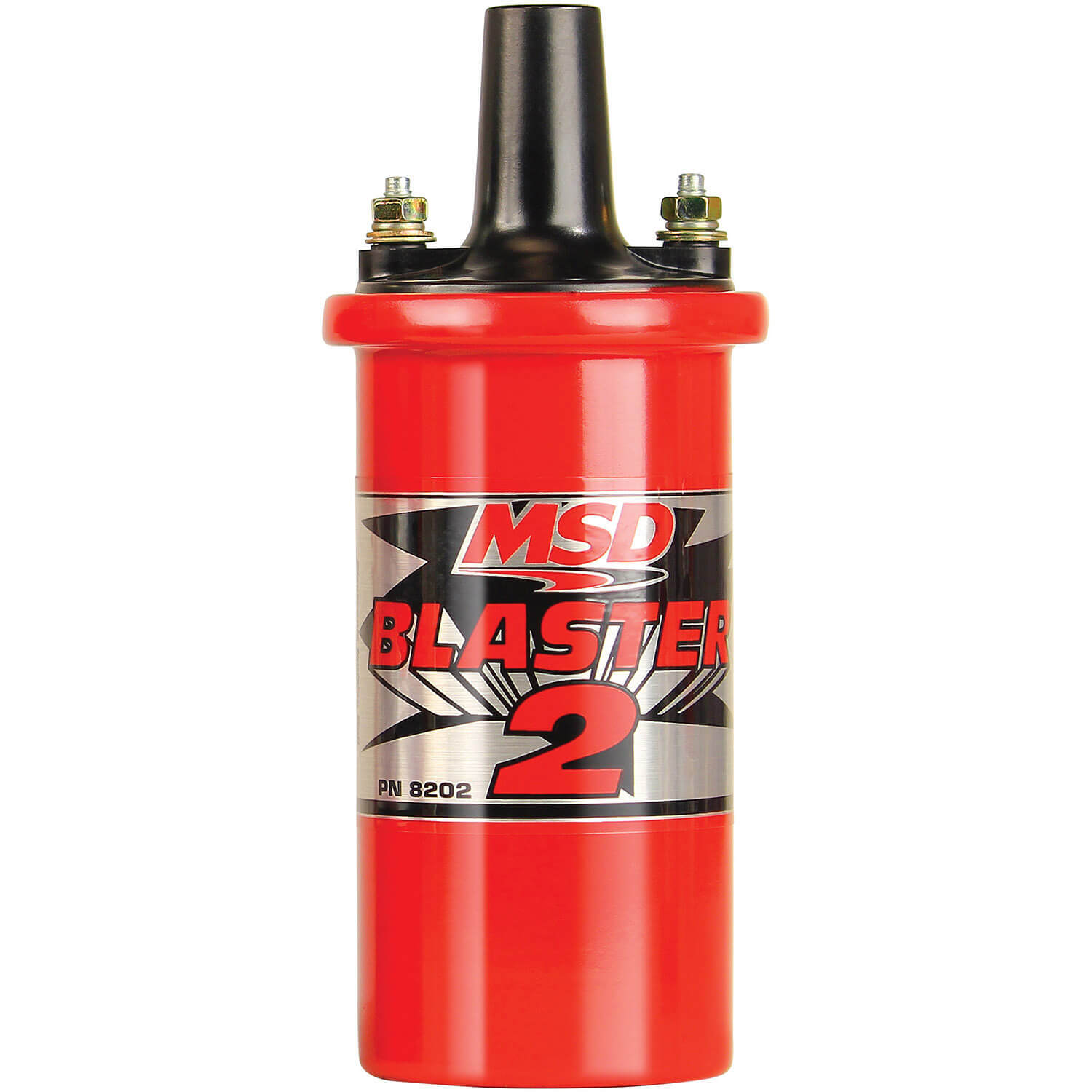

Our famous red canister coil! Great choice with an MSD 6-series ignition. If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD Blaster Ignition, MSD 5, 6, or 7, the Blaster Coil line is the right choice. Our Blaster Coils are designed for improved spark output! Special 100:1 windings are used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil-filled metal canister. The Blaster Coil is designed to mount in most factory canister coil mounts. MSD also offers a Chrome Coil Bracket, PN 8213. It is recommended to mount the PN 8202, PN 82023, and 8223 coils in an upright position. The High Vibration Coil, PN 8222, can be mounted in any position due to its epoxy potting compound.

Features:

  • Improved output coil for electronic ignitions, Blaster Ignition or MSD 5, 6, and 7 Series (ballast resistor required for points)
  • Alkyd tower with high dielectric properties is less prone to carbon tracking
  • 100:1 turns ratio and lower primary resistance produce high voltage output
  • Metal canister is filled with a premium grade oil for cooling
  • CARB E.O. Approved



Brand MSD
Emission Code 1
Inductance 8 mH
Maximum Voltage 45,000 Volts
Peak Current 140 mA
Primary Resistance .7 OHMs
Product Type Coil
Secondary Resistance 4.5K OHMs
Spark duration 350 uS
Turns Ratio 100:1
Warranty Limited 1 Year Warranty
Weight N/A
UPC 085132082025
Part Number 8202
SKU 8202
Barcode # 085132082025
Brand MSD
Shipping Weight 0.7500kg
Shipping Width 0.100m
Shipping Height 0.200m
Shipping Length 0.100m
Shipping Cubic 0.002000000m3
