A critical service item for any Commodore as the original fluid filled bushing fails prematurely causing shuddering under heavy braking and excess wheel movement. Nolathane offer a perfect solution that induces a responsive braking vehicle and includes caster adjustment for precise handling.
Kits Required: | 1 |
Warranty: | Limited Lifetime Warranty |

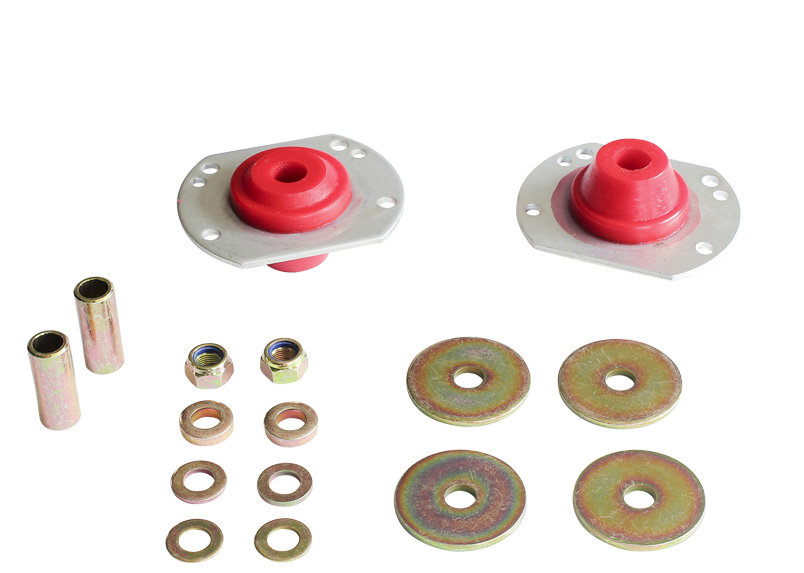

Kit Contents: | 2 Bushings, 2 Tubes, 10 Washers, 2 Nuts |
Install Guide: |
|
- The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
- Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
- Internal grease reservoirs provide continual self-lubrication for optimum friction management.
- Specially bonded design for optimised strength typically required in high load bearing applications.
- Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
- Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
- Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
- Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
- This kit is covered by a limited lifetime warranty including parts and labour.
- Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush Type |
Bush Qty |
OD (A) |
ID (B) |
L (C) |
FL (D) |
FLOD (E) |
C/Tube QTY |
C/Tube Size |
Similar Bushing Size |
13 | 2 | 70 mm | 21.5 mm | 60 mm | 2 | 22.2x16.2x56 mm |
- HOLDEN CALAIS 1997-2000 - CALAIS VT
- HOLDEN CALAIS 2000-2002 - CALAIS VX
- HOLDEN CALAIS 2002-2004 - CALAIS VY
- HOLDEN CALAIS 2004-2006 - CALAIS VZ
- HOLDEN CAPRICE 1999-2003 - CAPRICE WH
- HOLDEN CAPRICE 2003-2004 - CAPRICE WK
- HOLDEN CAPRICE 2004-2006 - CAPRICE WL
- HOLDEN COMMODORE 1997-2000 - COMMODORE VT SEDAN AND WAGON
- HOLDEN COMMODORE 2000-2002 - COMMODORE VX SEDAN AND WAGON
- HOLDEN COMMODORE 2000-2002 - COMMODORE VU UTE
- HOLDEN COMMODORE 2002-2004 - COMMODORE VY
- HOLDEN COMMODORE 2004-2006 - COMMODORE VZ RWD
- HOLDEN CREWMAN 2003-2004 - CREWMAN VY RWD
- HOLDEN CREWMAN 2004-2007 - CREWMAN VZ RWD
- HOLDEN MONARO 2001-2004 - MONARO V2
- HOLDEN MONARO 2004-2006 - MONARO VZ
- HOLDEN ONE TONNER 2002-2004 - ONE TONNER VY
- HOLDEN ONE TONNER 2004-2006 - ONE TONNER VZ
- HOLDEN STATESMAN 1999-2003 - STATESMAN WH
- HOLDEN STATESMAN 2003-2004 - STATESMAN WK
- HOLDEN STATESMAN 2004-2006 - STATESMAN WL
- HSV CLUBSPORT 1997-2000 - CLUBSPORT VT
- HSV CLUBSPORT 2000-2002 - CLUBSPORT VX
- HSV CLUBSPORT 2002-2004 - CLUBSPORT Y SERIES
- HSV CLUBSPORT 2004-2006 - CLUBSPORT Z SERIES
- HSV COUPE 2001-2004 - COUPE GTO V2
- HSV COUPE 2001-2004 - COUPE GTS V2
- HSV COUPE 2004-2007 - COUPE GTO Z SERIES
- HSV GRANGE 1999-2003 - GRANGE WH
- HSV GRANGE 2003-2004 - GRANGE WK
- HSV GRANGE 2004-2006 - GRANGE WL
- HSV GTS 1997-2000 - GTS VT
- HSV GTS 2000-2001 - GTS VX
- HSV GTS 2002-2004 - GTS Y SERIES
- HSV MALOO 2001-2002 - MALOO VU
- HSV MALOO 2002-2004 - MALOO Y SERIES
- HSV MALOO 2004-2007 - MALOO Z SERIES
- HSV MANTA 1997-1999 - MANTA VT
- HSV SENATOR 1997-1999 - SENATOR VT
- HSV SENATOR 1999-2002 - SENATOR VX
- HSV SENATOR 2002-2004 - SENATOR Y SERIES
- HSV SENATOR 2004-2006 - SENATOR Z SERIES
- HSV SV300 2001-2001 - SV300 VX
- HSV SV6000 2005-2006 - SV6000 Z SERIES
- HSV XU6 1998-2000 - XU6 VT
- HSV XU6 2000-2002 - XU6 VX
- HSV XU8 1999-1999 - XU8 VT
SKU | 48166 |
Brand | Nolathane |
Shipping Weight | 1.1000kg |
Shipping Width | 0.250m |
Shipping Height | 0.150m |
Shipping Length | 0.250m |
Shipping Cubic | 0.002000000m3 |
Unit Of Measure | ea |
