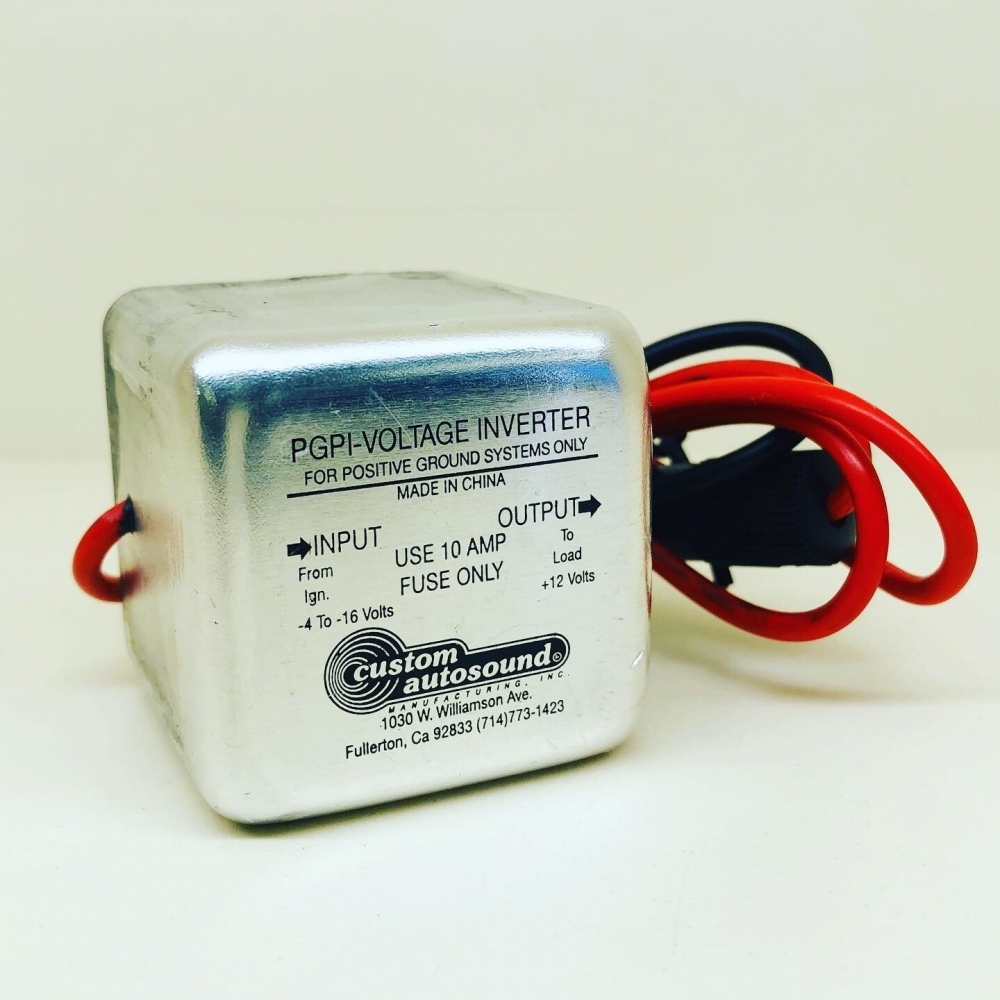

If you're classic car has a positive-ground chassis this is the ideal problem solver to enable you to run negative ground accessories.


Operate modern 12 volt negative ground accessories from positive ground 6, 8, or 12 volt electrical systems! These Power Inverters are very small (45 x 45 x 45 mm approx.), lightweight (only about 255g approx.), quiet and extremely efficient. They use a common ground, so isolation is not necessary.


Current draw is negligible when no load is applied (quiescent current is about 10 milliamps), so they are ideal for memory maintenance or alarm systems that must be left on for long periods of time without discharging the vehicle battery. Overload and Reverse Polarity protected for long reliable life.


Not Recommended For: Power actuated door locks, boot / trunk release solenoids, air conditioner clutches, fans, blowers, power windows or other electromechanical devices.



Features and Specifications:

  • Module Dimensions: 45mm x 45mm x 45mm
  • Input Voltage: -4 to -16 V DC
  • Output Voltage: +13.8V DC
  • Maximum Output Current -6 Volt systems
  • 6 Volt input (engine off): 2.1 Amps continuous duty
  • 7.2 Volt input (fast idle): 2.5 Amps continuous duty
  • Maximum Output Current -12 Volt systems
      ~ 4.0 Amps (min)
      ~ 4.7 Amps (max) continuous duty
  • Installation Wire Included
  • Fuse Included
  • Operation Manual Included
  • Made in The USA
SKU CA-PGPI-HC
Brand Classic Auto Sound
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
