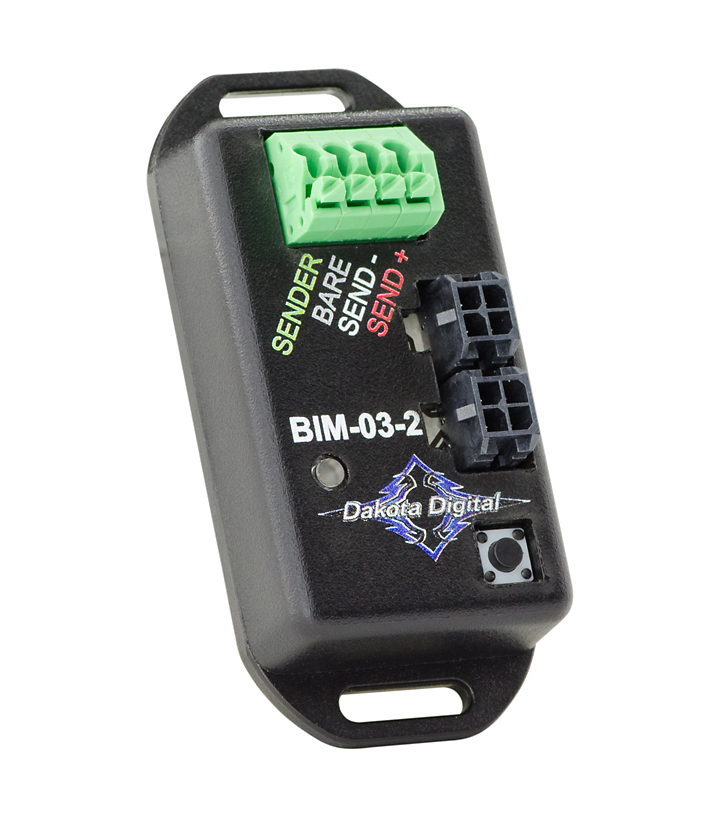

The BIM-03-2 is pressure module that allows you to display an additional pressure reading within your RTX, HDX, VHX and VFD3 (rev G) gauges. The BIM-03-2 is designed for Solid State Pressure senders , providing you phenomenal accuracy  (*see resolutions in the chart below).

Pressure Inputs:

  • Pressure (generic fluid or air)
  • Fuel Pressure
  • Air Pressure
  • Boost/Vacuum
  • NOS Pressure



Input senders and specifications:

Gauge Display Sender Part # Range Resolution Low Warning High Warning
PSI SEN-03-9 0- 300psi 1 0- 252 48- 300
FUEL P SEN-03-8 0- 100psi 0.2 0- 63 9- 99
AIR P SEN-03-9 0- 300psi 1 0- 252 48- 300
BOOST SEN-09-6 30inHg- 80psi 1inHg/ 0.2psi none 7- 69
NOS P SEN-23-2 0- 2000psi 10 600- 900 900- 1200

*The BIM-03-2 is designed to supply information to the compatible Dakota Digital VHX, HDX, RTX and VFD3 instrument systems with a black plastic control module. For any BIM-compatible control boxes which contain the 3.5mm headphone jack BIM input, add part number 394193 adaptor harness. Earlier instrument systems with an aluminum control module are not capable of BIM connectivity.

** BIM-03-2 Supersedes BIM-03-1

For Diesel Fuel Pressure Applications:  High pressure spikes found in many diesel applications can drastically shorten the lifespan of a sending unit.  In order to protect the sensor from these damaging spikes, a snubber adaptor should be added before the sensor.
