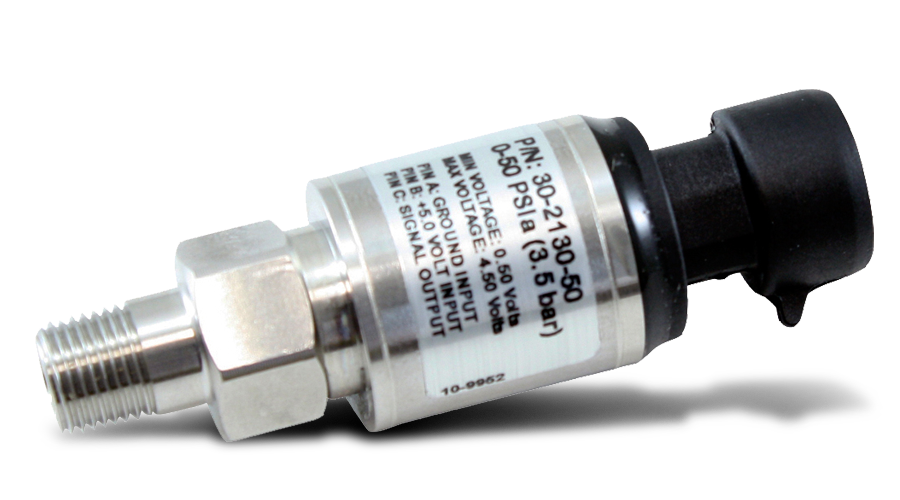

AEM 50 PSIa or 3.5 Bar Stainless Sensor Kit. Stainless Steel Sensor Body. 1/8" NPT Male Thread. Includes: 50 PSIa or 3.5 Bar Stainless Sensor, Connector, Pins, 1/8" NPT to -4 Adapter & 1/8" NPT to 3/16" Barb Adapter

Absolute (PSIa) Pressure Sensors
AEM offers high quality stainless steel PSIa sensors in 15 (1BAR), 30 (2BAR), 50 (3.5BAR), 75 (5BAR) and 100 (7BAR). PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure. PSIa pressure sensors are required if you wish to measure vacuum. A PSIa sensor will read about 14.7 PSI when the sensing element is exposed to atmospheric pressure at sea level however they can be recalibrated to read zero at atmospheric and a negative number at values less than atmospheric pressure.

Which Pressure Sensor is right for you?

There are many different tools that can be used for measurement, but the degree of accuracy is dependent upon the tool. For example, a ruler can measure distance with a good degree of accuracy, but for a more precise measurement a caliper should be used. The difference between a brass pressure sensor and a stainless steel pressure sensor is similar if we think about it in these terms:

Brass Pressure Sensor = Ruler
Use a Brass Pressure Sensor where you need a good reference to what pressure is being seen.
Example: Brass Pressure Sensor used for a Boost Gauge – Reference/Information for knowing manifold pressure, not for ECU calibration.

Stainless Pressure Sensor = Caliper
Use a SS Pressure Sensor where you need exact details of the pressure.
Example: MAP Sensor information for the ECU – Calibration/crucial information for the ECU.

Features:

• Accuracy: +/- 1% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
• Operating Temp: -40C to 105C / -40F to 221F
• Burst Pressure: 500PSI
• Response Time: < 1ms
• Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
• Sensor Body: Stainless Steel
• Wetted Materials: 304L & 316L Stainless Steel
• Thread: 1/8" NPT Male Thread
• Weight: < 85 Grams
• Supply Current:
• Output: .5 to 4.5Vdc Linear
• Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock
• Includes: 50 PSIa or 3.5 Bar Stainless Sensor, Connector, Pins, Pin Lock, 1/8" NPT to -4 Adapter & 1/8" NPT to 3/16" Barb Adapter
