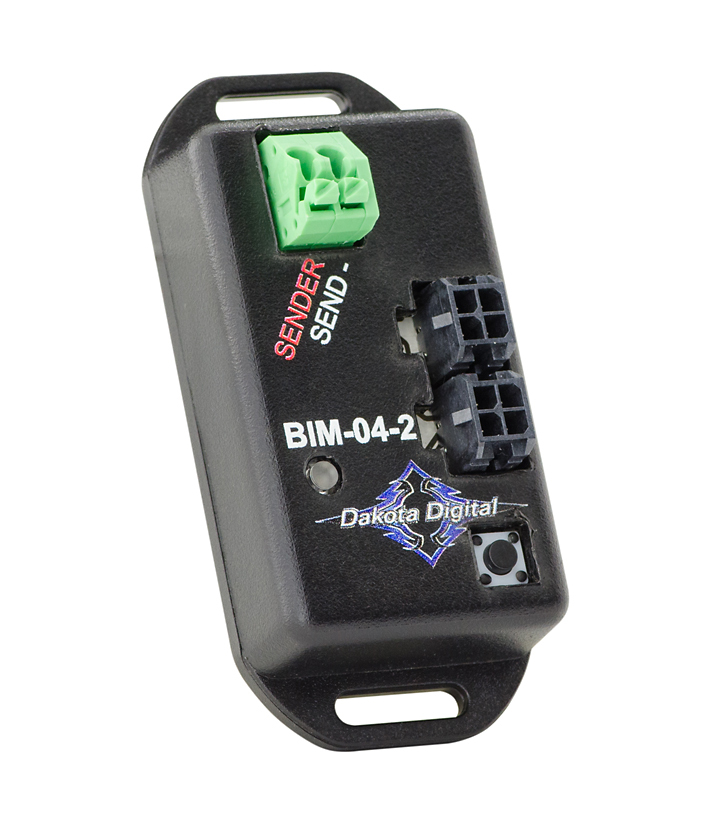

The BIM-04-2 is a temperature module that allows you to display an additional temperature reading within your RTX, HDX, VHX or VFD3  gauges. The BIM-04-2 utilizes Ground Isolated senders for easy installation without the headache of engine ground deficiencies.

Temperature Inputs:

  • Temperature (generic fluid)
  • Water Temp
  • Oil Temp
  • Transmission Temp
  • Differential Temp



Input senders and specifications:

Gauge Display Sender Part # Range High Warning
TEMP SEN-04-5 100- 320F 131- 320F
WATER SEN-04-5 100- 320F NONE SAME AS SYSTEM
OIL SEN-04-5 100- 320F 131- 320F
TRANS SEN-04-5 100- 320F 131- 320F
DIFF SEN-04-5 100- 320F 131- 320F

* All temperature readings will display either Fahrenheit or Celsius depending on the setting selected by the gauge cluster.

For Ford Flathead motors there is a special option that allows the system to display the highest temperature reading in the main display at all times. The lowest temperature reading will display in the information center.

**The BIM-04-2 is designed to supply information to the compatible Dakota Digital VHX, HDX, RTX and VFD3 instrument systems with a black plastic control module. For any BIM-compatible control boxes which contain the 3.5mm headphone jack BIM input, add part number 394193 adaptor harness. Earlier instrument systems with an aluminum control module are not capable of BIM connectivity.

***The BIM-04-2 Supersedes the BIM-04-1

SKU DKD-BIM-04-2
Model # BIM-04-2
Barcode # 670219089662
Brand Dakota Digital
Shipping Weight 0.9091kg
Shipping Width 0.076m
Shipping Height 0.051m
Shipping Length 0.102m
